Fresh-air Duct Installation Note

  1. Install the fresh-air duct as shown in the figure.

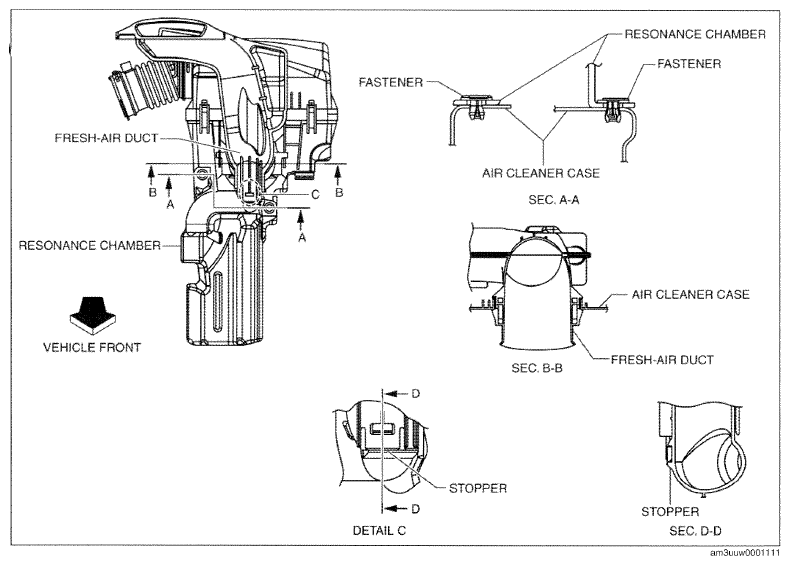

    Fig 1: Identifying Fresh-Air Duct Installing Position
    G09782633Courtesy of MAZDA MOTORS CORP.
