Accelerator Pedal Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Remove in the order indicated in the table.

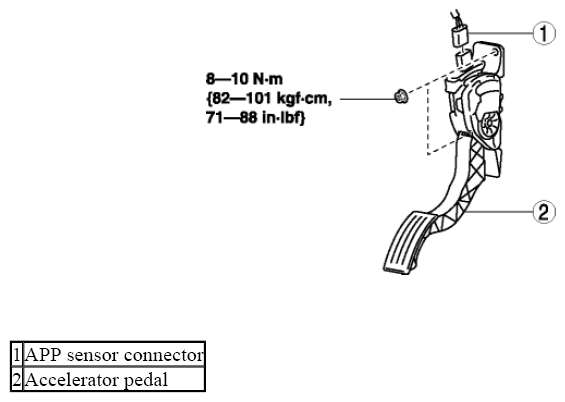

    Fig 1: APP Sensor Connector And Accelerator Pedal Nuts With Torque Specifications
    G08150152Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
