Front Wheel Hub Bolt Replacement

  1. Remove the brake caliper component and disc plate.
  2. Remove the wheel hub bolt using the SST  as shown below.

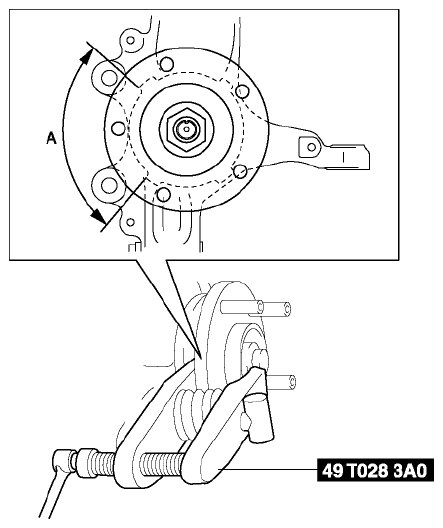

    Fig 1: Removing Front Wheel Hub Bolt Using SST
    G08150493Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When removing the wheel hub bolts, perform the work between range A shown to assure a space for the bolt removal.
  3. Place a new wheel hub bolt in the wheel hub.
  4. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown below.
    Fig 2: Installing Wheel Hub
    G08150494Courtesy of MAZDA MOTORS CORP.
