Cooling System Location Index

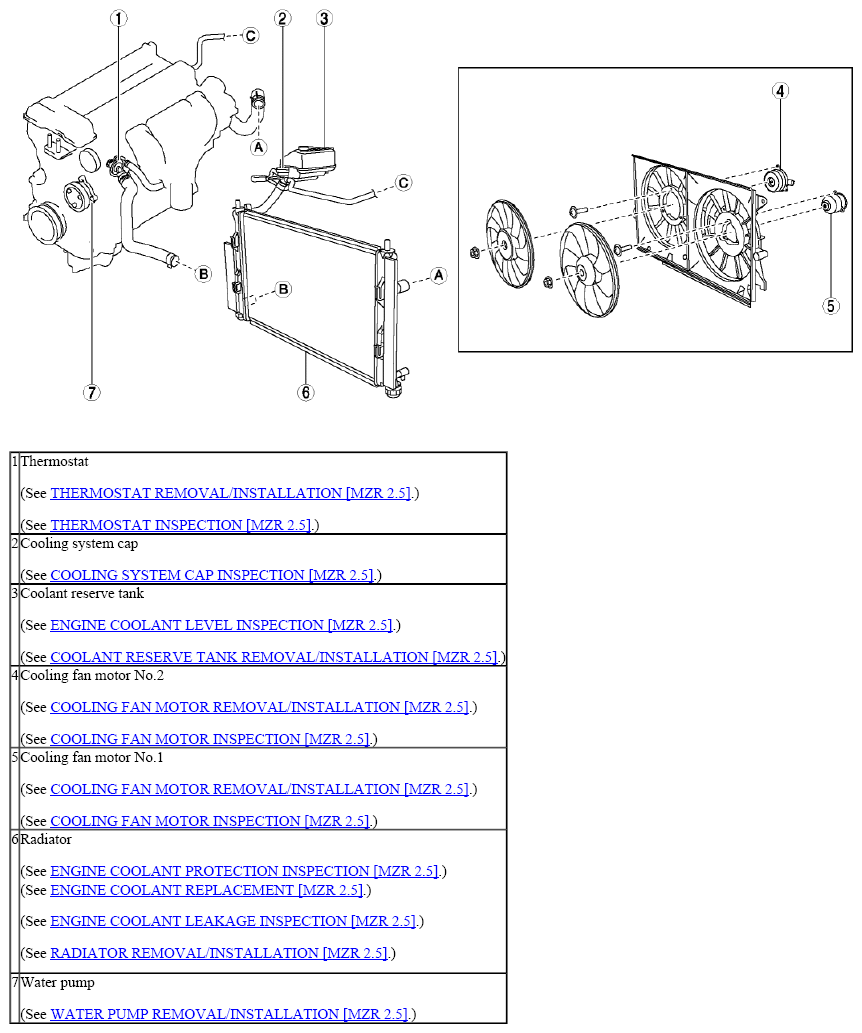

Fig 1: Identifying Cooling System Component Locations
G08150119Courtesy of MAZDA MOTORS CORP.
