Engine Control System Wiring Diagram

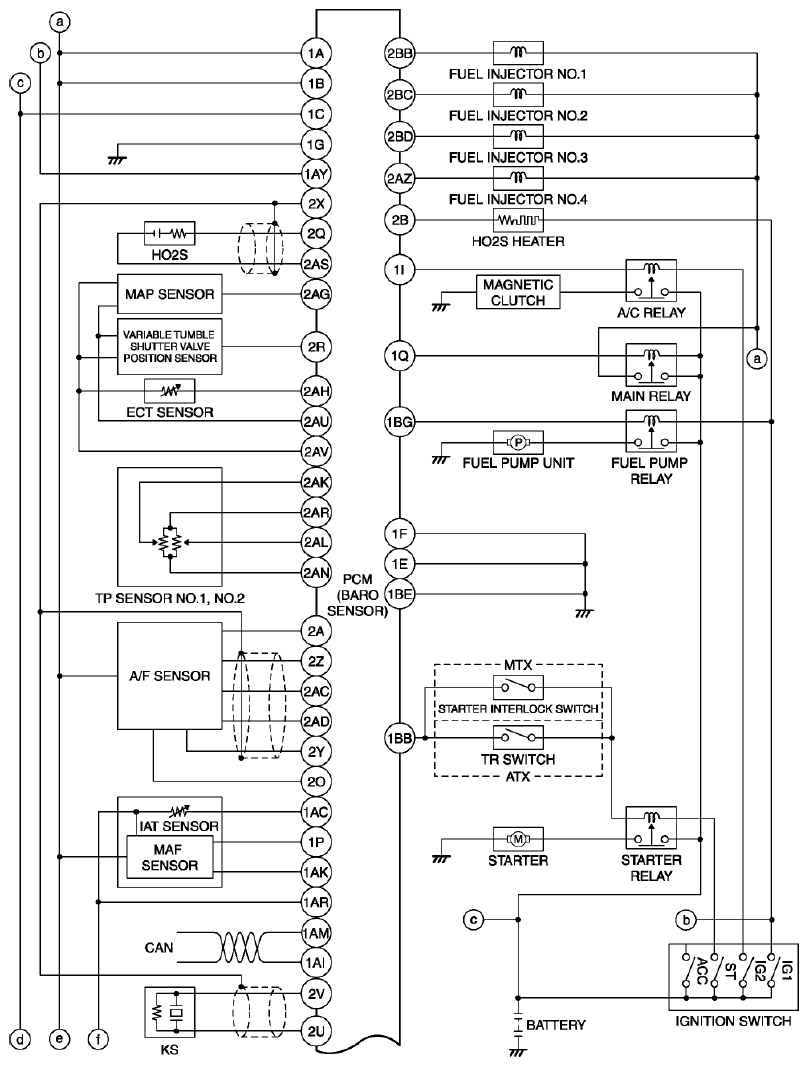

Fig 1: Engine Control System Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

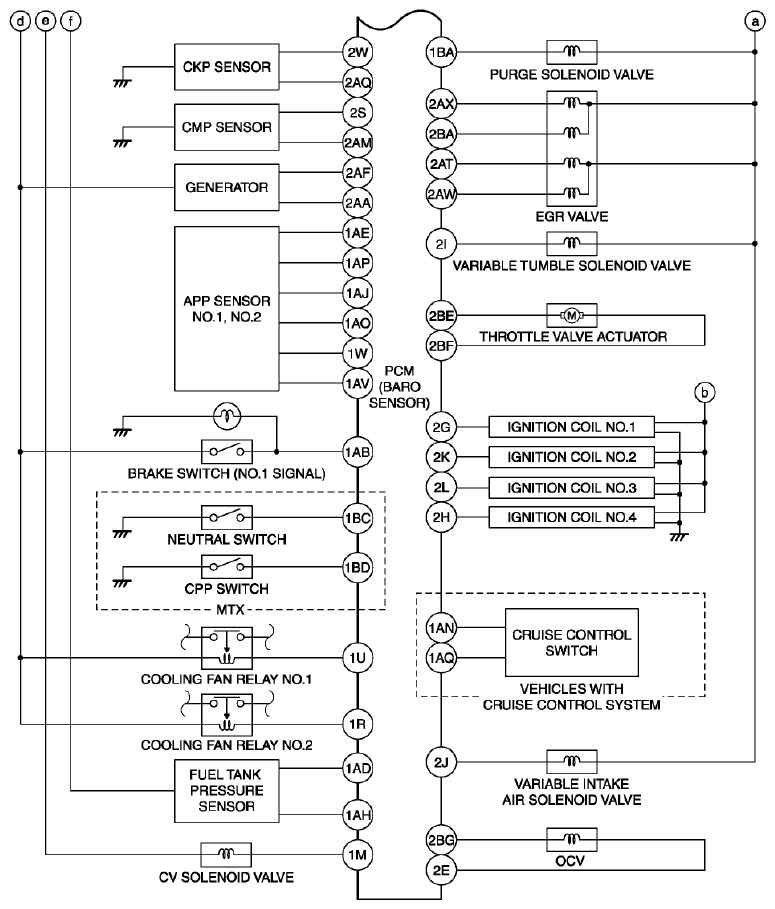

Fig 2: Engine Control System Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
