Drain Hose Installation Note

  1. Install the clip as shown below.

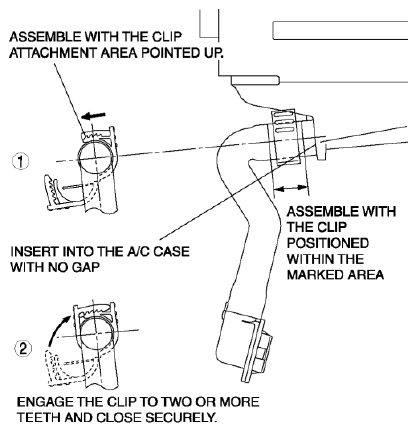

    Fig 1: Identifying Clip Installation Position On Drain Hose
    G08150891Courtesy of MAZDA MOTORS CORP.
