Using the Symptom Troubleshooting

Determine the malfunctioning part quickly and accurately based on each malfunction symptom.
After repair, verify that the malfunction symptom is eliminated.
There are the troubleshooting procedures and actions for each malfunctioning part.
Structured as procedures for verifying malfunction symptom quickly and accurately.

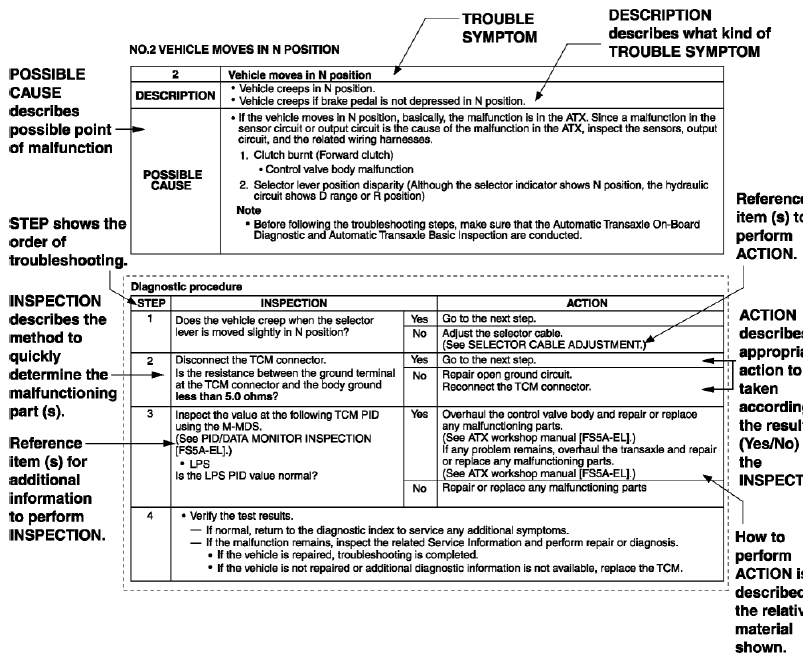

Fig 1: Symptom Troubleshooting Table
Courtesy of MAZDA MOTORS CORP.
