Differential Oil Temperature Sensor And AWD Control Module Connector End View
Differential Oil Temperature Sensor And AWD Control Module Connector End View

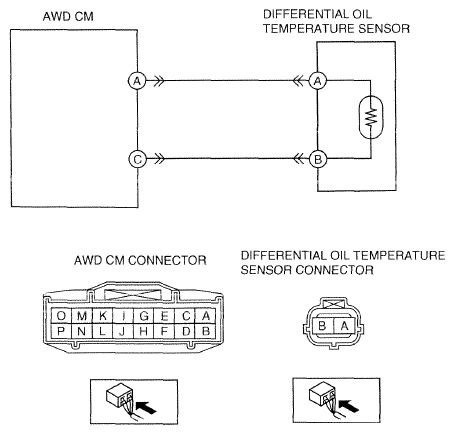

Fig 1: Differential Oil Temperature Sensor And AWD Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
