Seat Weight Sensor Control Module Connector End View
Seat Weight Sensor Control Module Connector End View

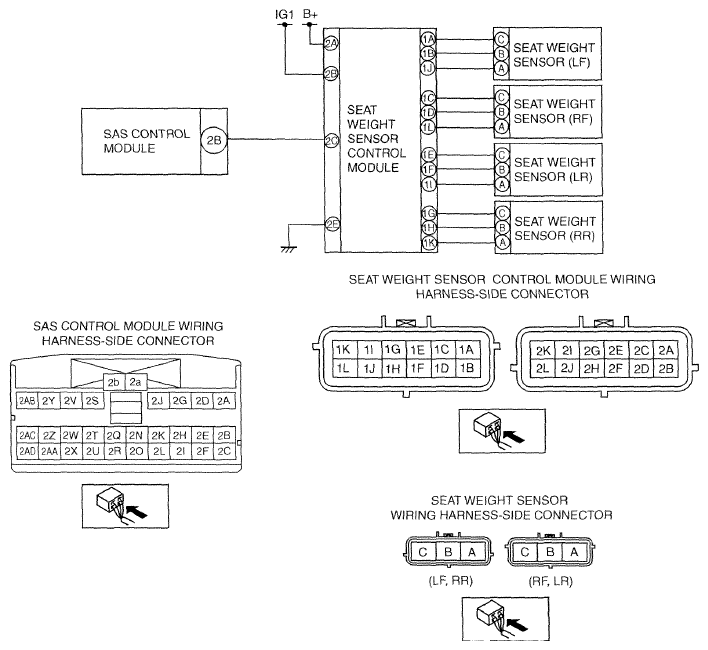

Fig 1: Seat Weight Sensor Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.

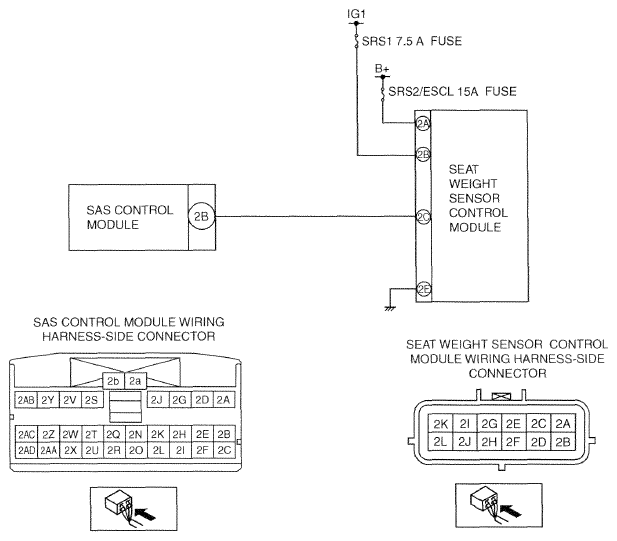

Fig 1: Seat Weight Sensor Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.

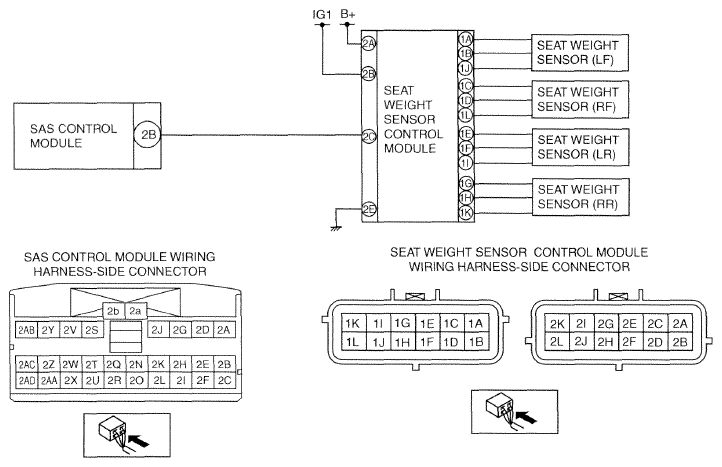

Fig 1: Seat Weight Sensor Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Fig 1: Seat Weight Sensor Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
