Symptom Troubleshooting - Power Window Systems
›
Power Window System Wiring Diagram
Power Window System Wiring Diagram

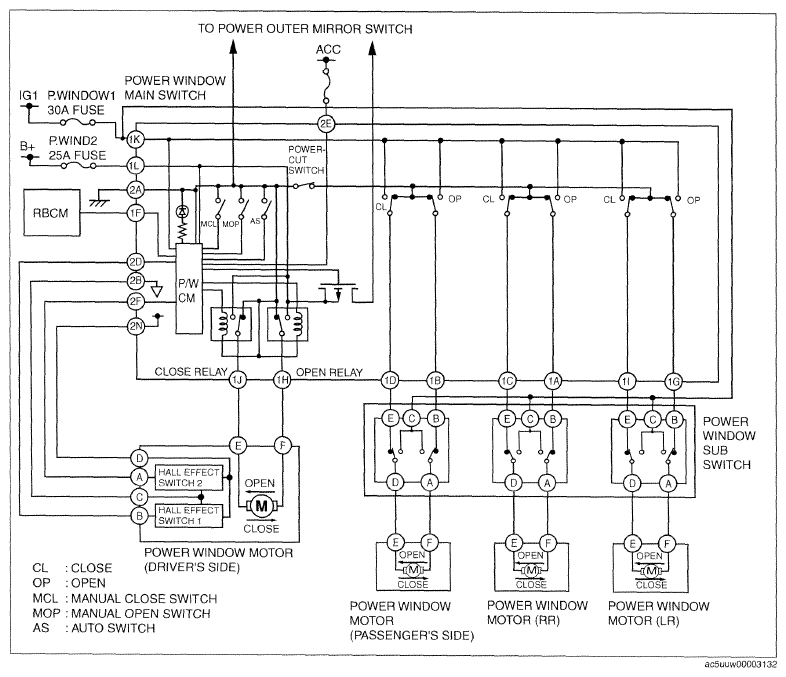

Fig 1: Power Window System - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
