AFS Control Module And Front Combination Light (LH) Connector End View
AFS Control Module And Front Combination Light (LH) Connector End View

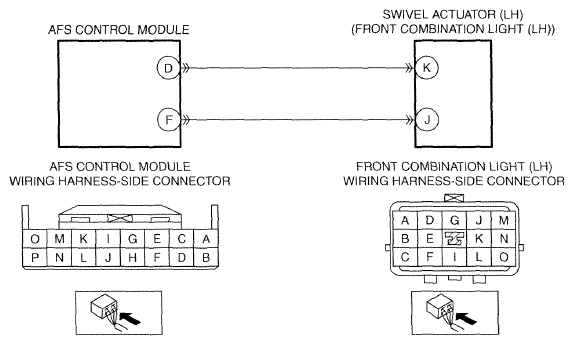

Fig 1: AFS Control Module And Front Combination Light (LH) Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
