Audio Unit And Bluetooth Unit Connector End View
Audio Unit And Bluetooth Unit Connector End View

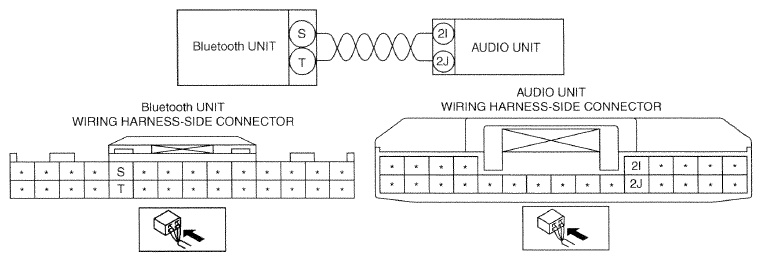

Fig 1: Audio Unit And Bluetooth Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
