Front Combination Light Connector End View
Front Combination Light Connector End View

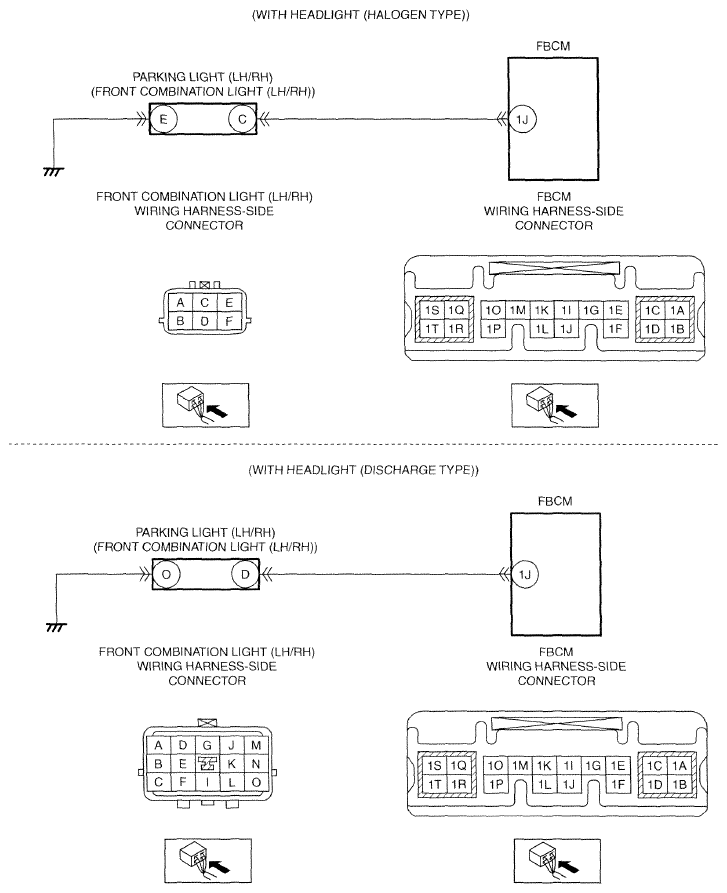

Fig 1: Front Combination Light Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
