PCM Connector End View

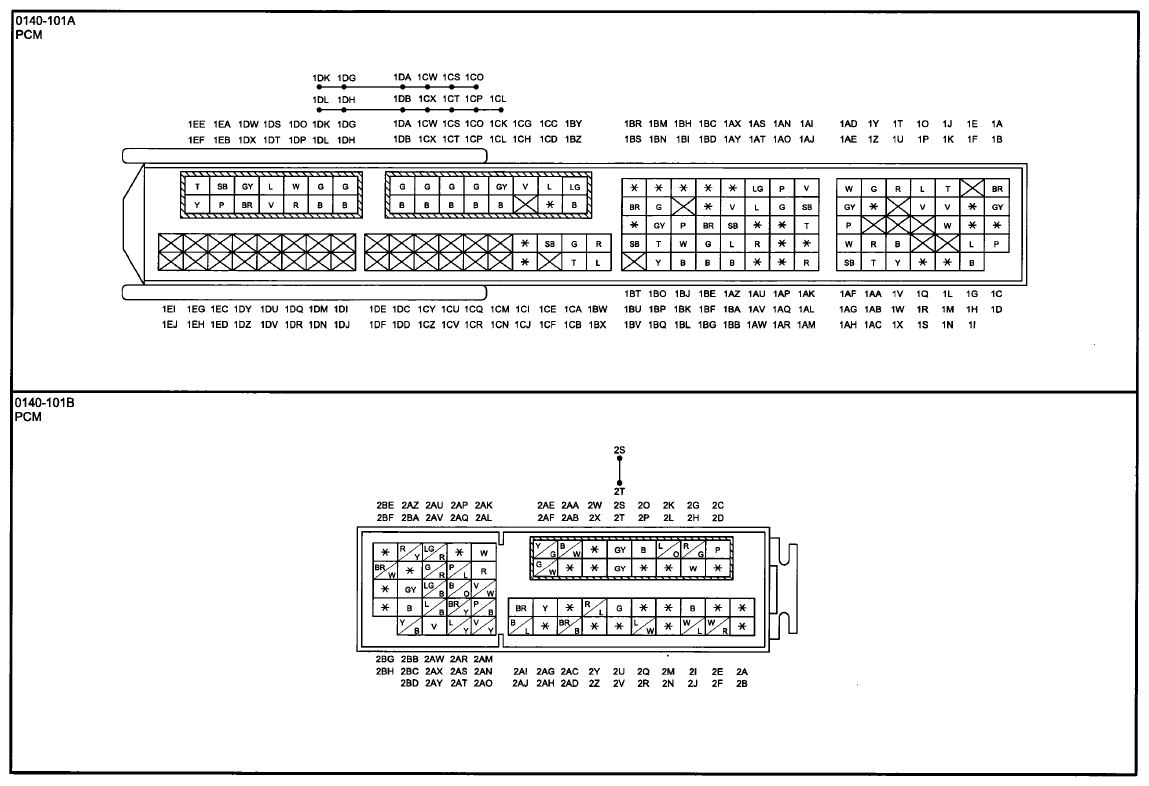

Fig 1: PCM Connector End View
G09761858Courtesy of MAZDA MOTORS CORP.

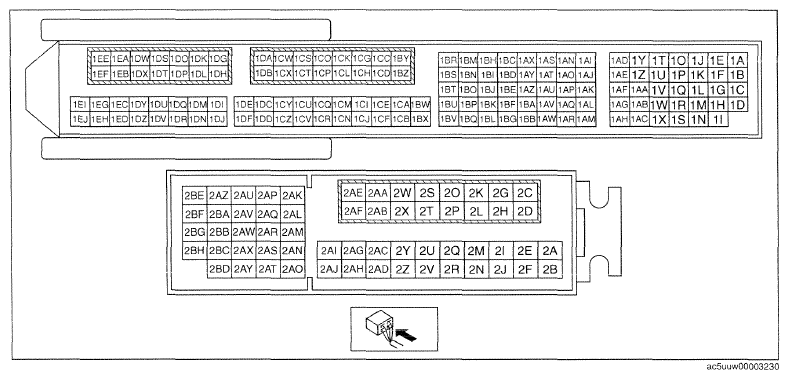

Fig 1: PCM Connector End View
G09758686Courtesy of MAZDA MOTORS CORP.
