Solar Radiation Sensor And Climate Control Unit Connector End View
Solar Radiation Sensor And Climate Control Unit Connector End View

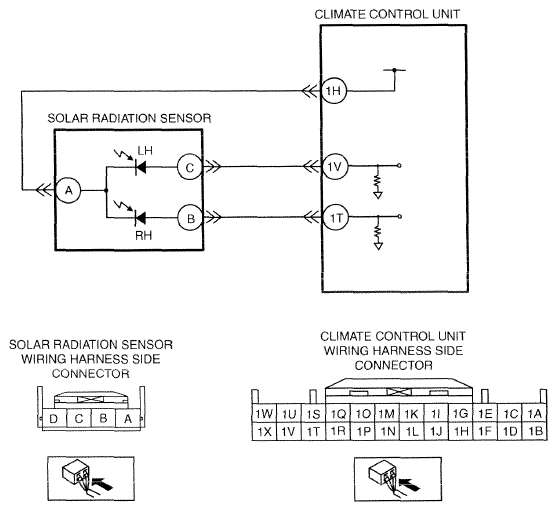

Fig 1: Solar Radiation Sensor And Climate Control Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
