Start Stop Unit And LF Control Unit Connector End View
Start Stop Unit And LF Control Unit Connector End View

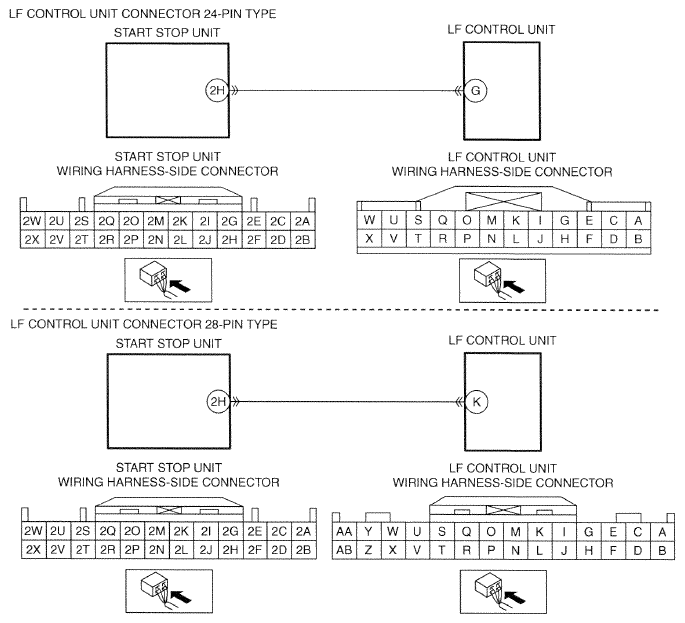

Fig 1: Start Stop Unit And LF Control Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
