Clock Input/Output Check Mode
›
Activation Procedure
Activation Procedure

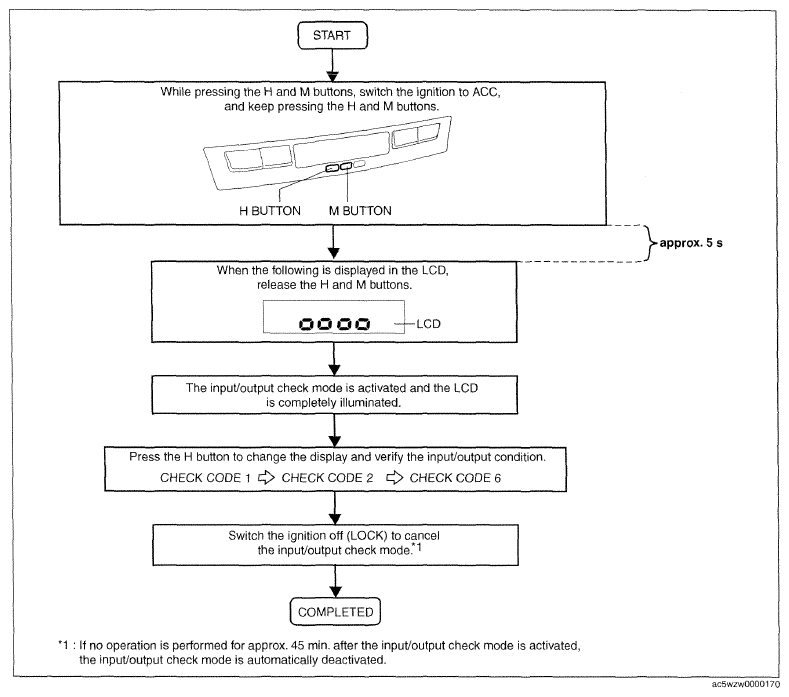

Fig 1: Clock Input/Output Activation Procedure
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
