U.S.A. And CANADA: Notes

Level the vehicle.
Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
Drain the fuel. (See FUEL DRAINING PROCEDURE .)
Open the fuel-filler lid.
Remove in the order indicated in the table.

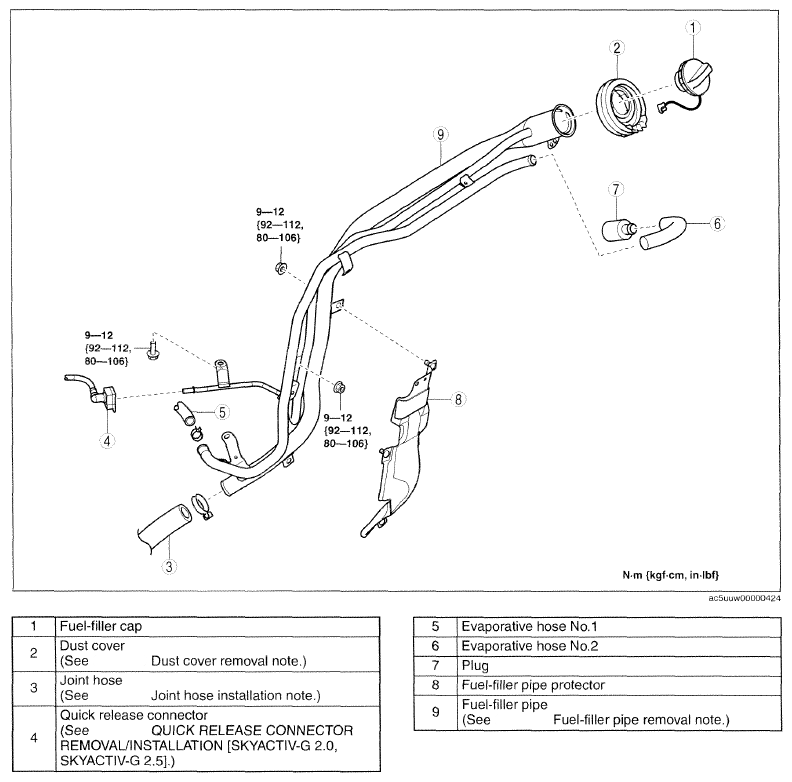

Fig 1: Fuel System Components Location - U.S.A. And Canada With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
