A/C Unit Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.
- Assemble in the reverse order of disassembly.

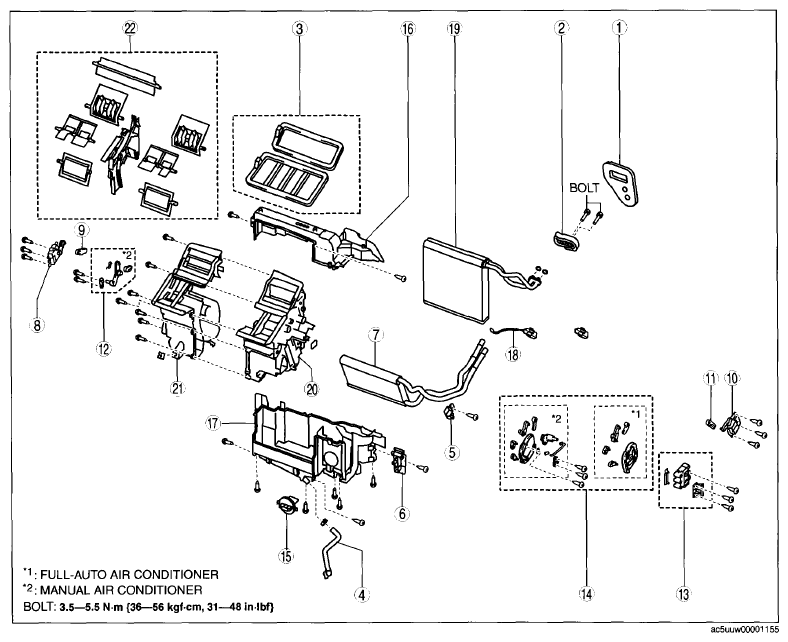

| Step | Part name | Disassembly/assembly of main parts | ||
|---|---|---|---|---|
| Heater core | Evaporator temperature sensor | Evaporator | ||
| 1 | Polyurethane foam | X | X | X |
| 2 | Expansion valve | - | - | X |
| 3 | Adhesive polyurethane | - | - | - |
| 4 | Drain hose | - | - | - |
| 5 | Plate (1) | X | X | X |
| 6 | Plate (2) | X | X | X |
| 7 | Heater core | X | X | X |
| 8 | Driver-side air mix actuator (Full-auto air conditioner) | - | - | - |
| 9 | Driver-side air mix link (Full-auto air conditioner) | - | - | - |
| 10 | Passenger-side air mix actuator (Full-auto air conditioner) | - | - | - |
| 11 | Passenger-side air mix link (Full-auto air conditioner) | - | - | - |
| 12 | Air mix link (Manual air conditioner) | - | - | - |
| 13 | Airflow mode actuator (Full-auto air conditioner) | - | - | - |
| 14 | Airflow mode link set | - | - | - |
| 15 | Power MOS FET (Full-auto air conditioner) | - | - | - |
| Resistor (Manual air conditioner) | - | - | - | |
| 16 | A/C case (1) | - | X | X |
| 17 | A/C case (2) | - | X | X |
| 18 | Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE ). | - | X | X |
| 19 | Evaporator | - | - | X |
| 20 | A/C case (3) | - | - | - |
| 21 | A/C case (4) | - | - | - |
| 22 | Door damper | - | - | - |
| X: Applicable -: Not applicable |
||||
