Airflow Mode Main Link Installation Note
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Apply only the specified grease to links. Otherwise abnormal noise or improper operation may result.

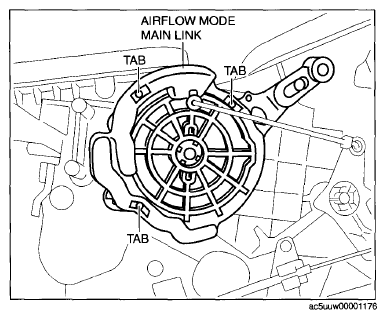

- Align the airflow mode main link hole with the airflow mode sub link projection as shown in the figure.
- Press the airflow mode main link lightly to the A/C unit, then set the projections of each airflow mode sub link into the grooves of the airflow mode main link.

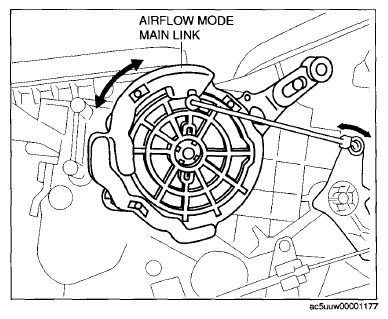

- Rotate airflow mode main link and verify that each mode is accessed properly.
