Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the following parts:
    1. Front scuff plate (passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Front side trim (passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
    5. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION ).
    6. Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION ).
  3. Disconnect the blower motor connector.
  4. Disconnect the air intake actuator connector.
    Fig 1: Identifying Air Intake Actuator And Blower Motor Connector
    G09075753
  5. Remove the blower unit installation nuts.
    Fig 2: Blower Unit Installation Nuts With Torque Specifications
    G09075754
  6. Pass the blower unit projection between the brackets shown in the figure (1) and rotate the blower unit (2).

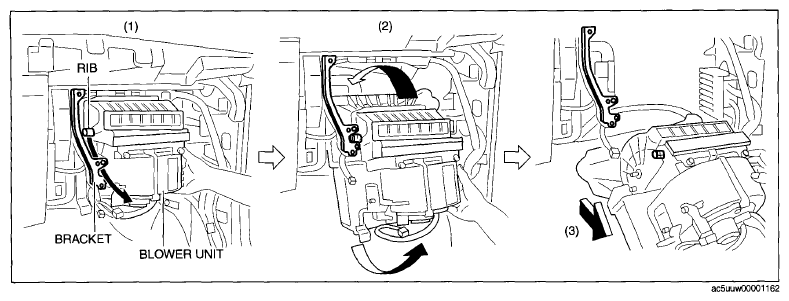

    Fig 3: Removing Blower Unit
    G09075755
  7. Pull out the blower unit in the direction of the arrow (3).
  8. Remove the blower unit.
  9. Install in the reverse order of removal.

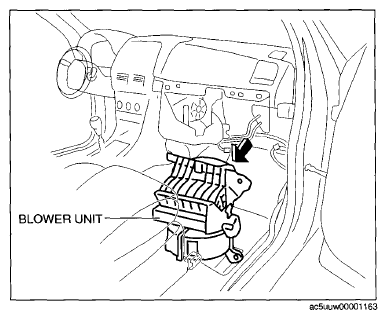

    Fig 4: Locating Blower Unit
    G09075756
