Refrigerant Line Removal/Installation: Notes

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Discharge the refrigerant. (See REFRIGERANT CHARGING ).
Disconnect the engine ground.
Disconnect the refrigerant pressure sensor connector.
Remove in the order indicated in the table. Do not allow compressor oil to spill.
CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

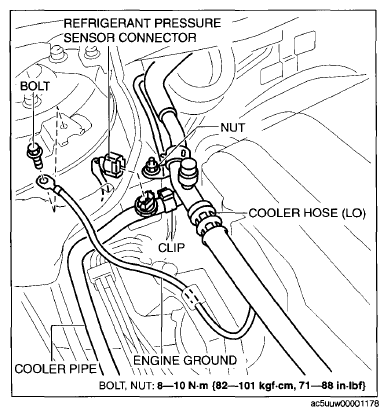

Fig 1: Cooler Hose, Engine Ground, Refrigerant Pressure Sensor Connector Clip And Bolts With Torque Specifications

Fig 2: Receiver/Drier Bracket And Bolt With Torque Specifications
Install in the reverse order of removal.
Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST ).
