Caliper (Front) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Assemble in the reverse order of removal.

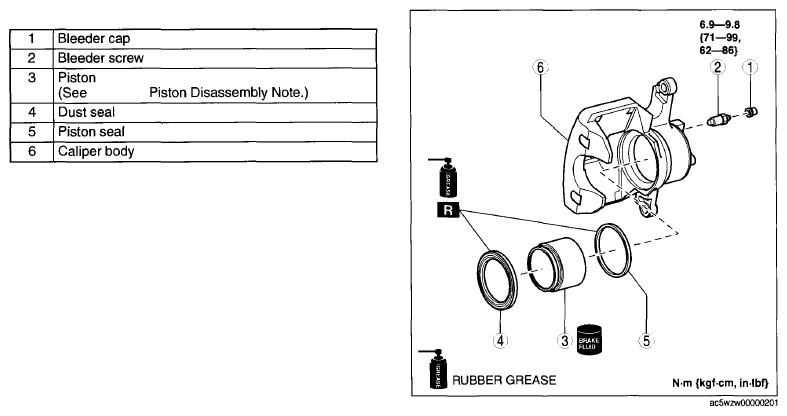

Fig 1: Front Bleeder Cap, Screw, Caliper Body, Piston And Dust Seal With Torque Specifications
