Audio Unit Removal/Installation: Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing the audio unit, the audio unit could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.

Fig 1: Identifying Clean Cloth

Connect all the connectors.
Temporarily position the audio unit on the ribs and align the hole positions of the instrument panel with clips.

Fig 2: Identifying Connectors (With And Without Color LCD)

Fig 3: Identifying Audio Unit And RIB Surface
Press the audio unit in the position shown in the figure and engage clips to the instrument panel.
CAUTION:
- If the audio unit switch area and screen are pressed it could cause a malfunction.

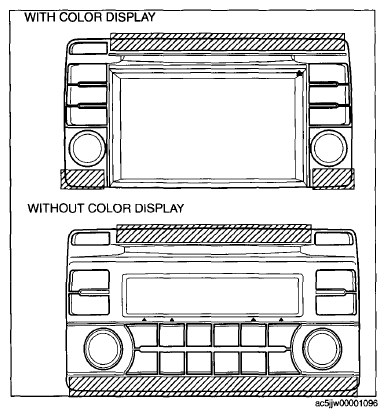

Fig 4: Identifying Audio Unit Instrument Panel (With And Without Color Display)
Install the screws.
Install the bolt.
Install the Decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION ).
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).

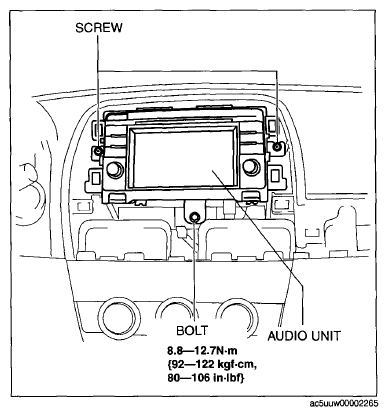

Fig 5: Audio Unit, Mounting Screws And Bolts With Torque Specifications
