Car-Navigation Unit Removal/Installation: Notes
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- The audio unit communicates with the car-navigation unit and records the presence/non-presence of the car-navigation unit when the ignition is switched to ACC or ON (engine off or on) after connecting the negative battery cable.
- If the commander switch is installed with the negative battery cable connected when the audio unit records that there is no car-navigation unit, the car-navigation unit does not operate.
- For the car-navigation unit installation/removal, disconnect the negative battery cable, switch the ignition to ACC or ON (engine off or on) after the servicing is completed, and the audio unit records the presence/non-presence of the car-navigation unit.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Affix protective tape to the gaps between the car-navigation and lower panel as shown in the figure.CAUTION:
- Before inserting a flathead screwdriver into the gap between the car-navigation and lower panel, affix protective tape to prevent damage. Otherwise, the lower panel could be damaged by the flathead screwdriver.

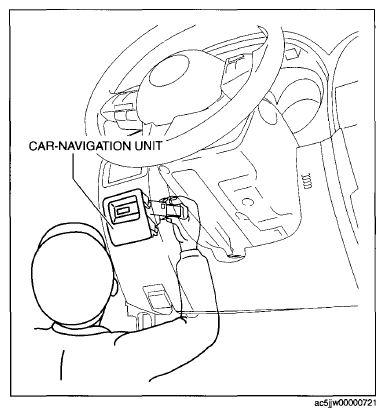

- Insert your hand from the lower side of the lower panel and press the car-navigation unit so that there is a gap on the upper side of the car-navigation unit.
- Insert a tape-wrapped fastener remover into the gap between the lower panel and car-navigation unit.
- Move the fastener remover to the position of the arrow shown in the figure and detach the car-navigation unit clip from the lower panel.

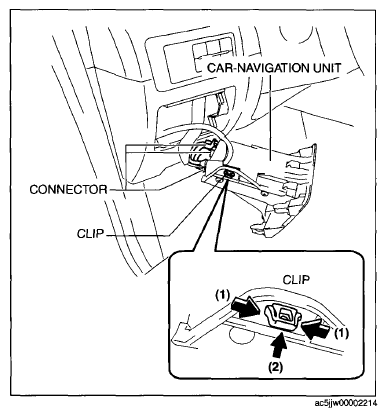

- Pull out the car-navigation unit and disconnect the connectors.
- While pressing the tabs of the clip in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach it from the car-navigation unit.
- Remove the clip.
- Remove the car-navigation unit.
- Install in the reverse order of removal. (See INSTALLATION NOTE ).
