Condenser Removal/Installation: Notes

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the following parts:
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION ).
    2. Trunk end trim (LH) (See TRUNK END TRIM REMOVAL/INSTALLATION ).
    3. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
    4. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION ).
    5. D-pillar trim (LH) (See D-PILLAR TRIM REMOVAL/INSTALLATION ).
  3. Disconnect the connector.

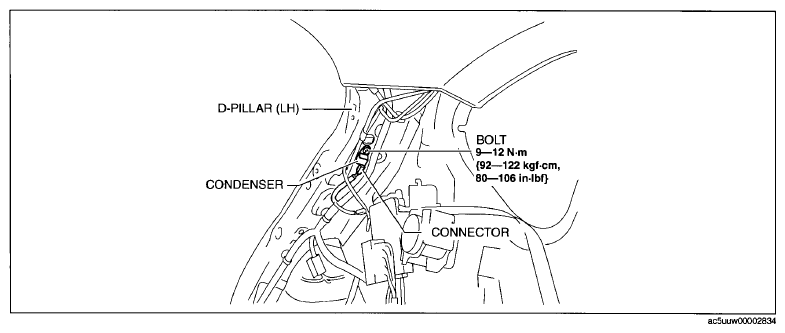

    Fig 1: D-Pillar LH, Condenser, Connector And Mounting Bolt With Torque Specification
    G09077694
  4. Remove the bolts.
  5. Remove the condenser.
  6. Install in the reverse order of removal. (See CONDENSER INSTALLATION NOTE ).
