Auto Leveling Sensor Removal/Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Disconnect the connector.

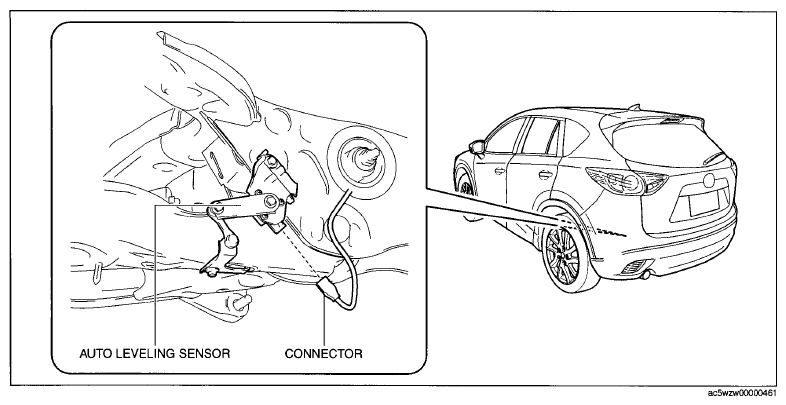

Fig 1: Identifying Auto Leveling Sensor With Connectors
Remove the bolts.

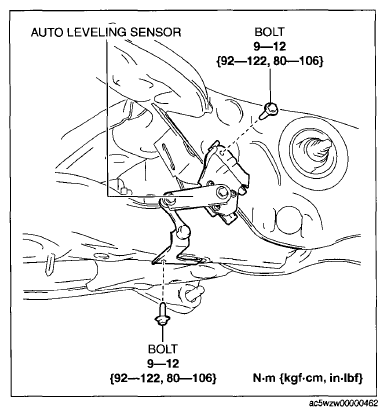

Fig 2: Auto Leveling Sensor With Bolts And Torque Specifications
Remove the auto leveling sensor.
Install in the reverse order of removal.
Perform the auto leveling system initial setting. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION ).

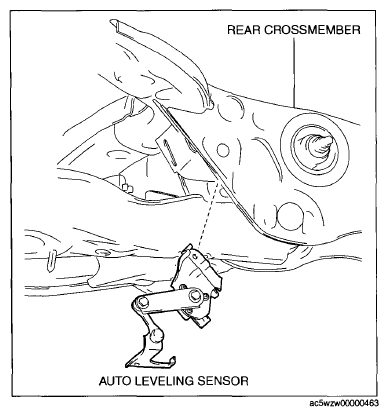

Fig 3: Identifying Auto Leveling Sensor And Rear Crossmember
