Discharge Headlight Control Module Removal/Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS ).

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION ).
Disconnect the connector.

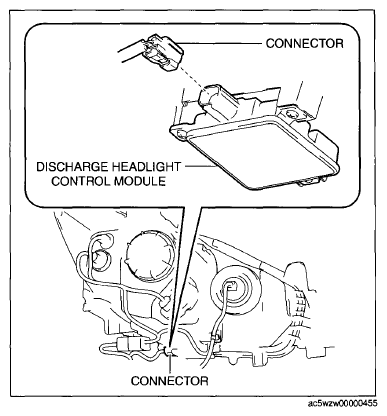

Fig 1: Identifying Discharge Headlight Control Module Connectors
Remove the screws.

Fig 2: Identifying Discharge Headlight Control Module Screws
Insert a tape-wrapped flathead screwdriver into the clearance between the discharge headlight control module and connector shown in the figure.
Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, lift up the connector, and disconnect it.

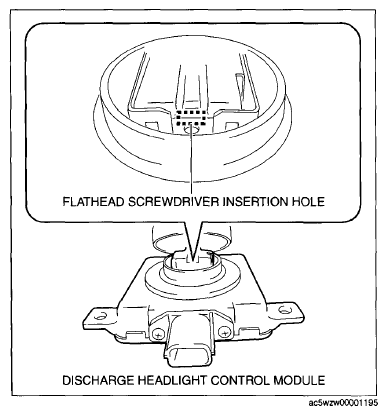

Fig 3: Identifying Discharge Headlight Control Module Hole

Fig 4: Removing Connector From Igniter Using Flathead Screwdriver
Remove the seal.
Remove the discharge headlight control module.
Install in the reverse order of removal.

Fig 5: Identifying Discharge Headlight Control Module Seal
