Front Combination Light Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order shown in the figure.
Halogen type

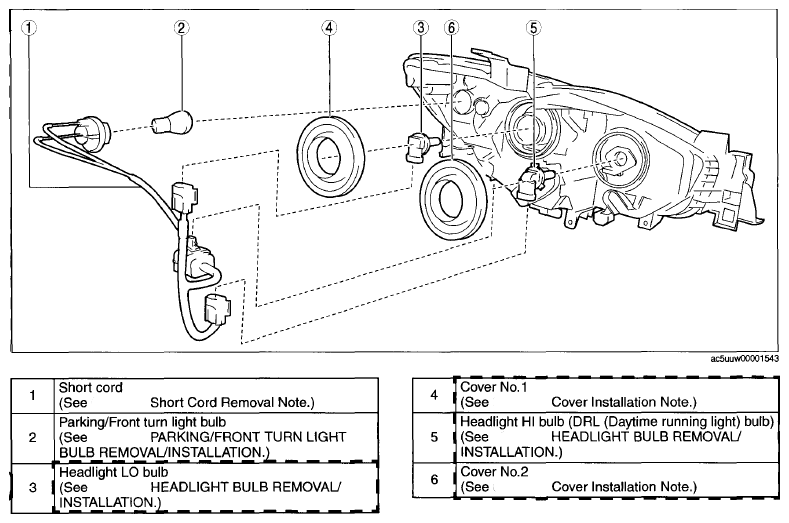

Fig 1: Disassembled View Of Front Combination Light (Halogen Type)

Discharge type

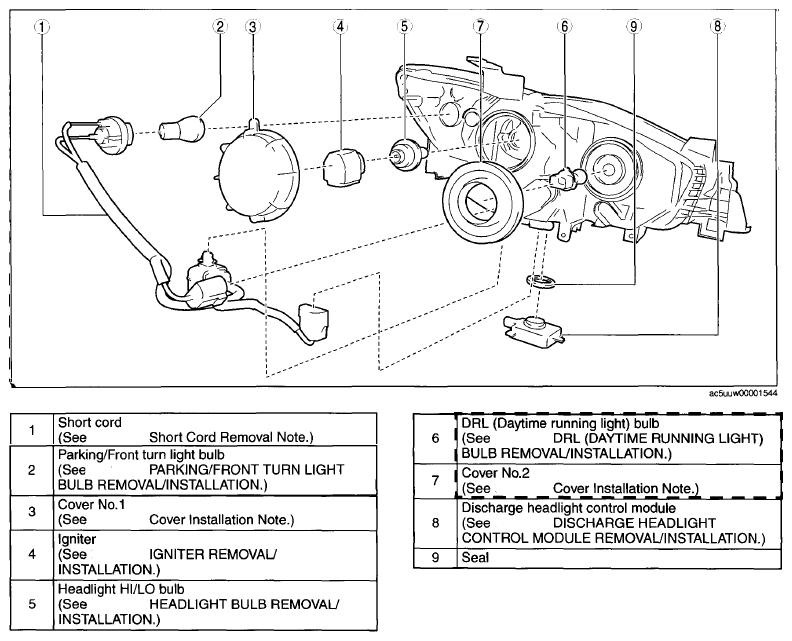

Fig 2: Disassembled View Of Front Combination Light (Discharge Type)
Assemble in the reverse order of disassembly.
