Front Fog Light Aiming

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Perform front fog light aiming if any of the following work is performed.
- Front fog light replacement
- Work that can affect vehicle height such as suspension replacement or removal/installation.

Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools equipped on the vehicle.
Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION ).
Move the vehicle to level ground.
Make a screen shown in the figure using double-weight, white paper. (Common for right and left)
Line up the vehicle with the wall so that the distance to the front fog lights is 3 m {9.8 ft} from the wall.

Fig 1: Identifying Distance Between Front Fog Lights And Brightness Boardlight

Fig 2: Identifying Distance Between Front Fog Lights And Wall
Measure the height at the center point of the front fog light.
NOTE:
- Measure the height at the center point of the front fog light in which the aiming is being adjusted because the vehicle height differs depending on vehicle conditions.
Align the center point of the front fog light with the center of the screen.

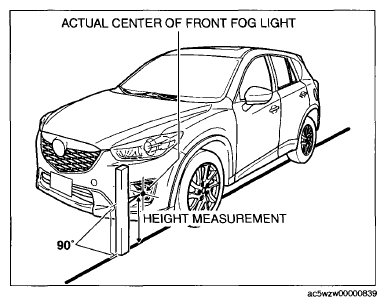

Fig 3: Measuring Height At Center Point Of Front Fog Light

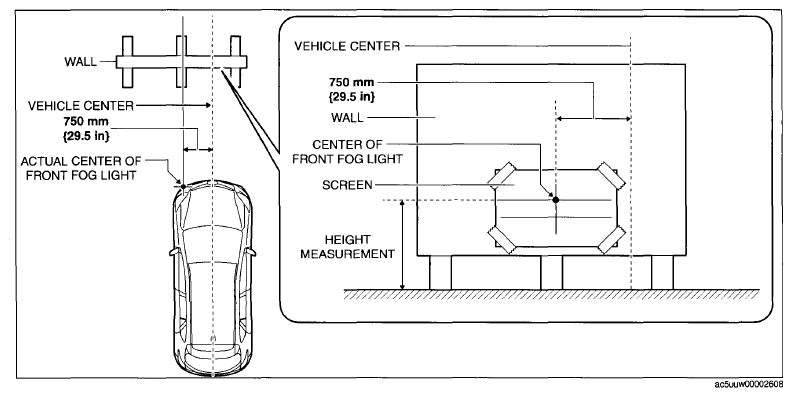

Fig 4: Aligning Center Point Of Front Fog Light With Center Of Screen
Set a partition in front of the front fog light which is not being adjusted to block the light.
Start the engine and charge the battery.
Turn on the front fog lights.
Verify that the brightness border line of the front fog light is at the position indicated on the adjustment screen.
- If the brightness border line is not at the position indicated on the adjustment screen, perform the following adjustment.
1. Remove the bolt before cutting the front fog light hole cover located on the bolt installation hole.

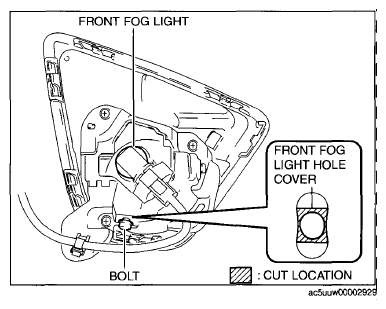

  Fig 5: Identifying Front Fog Light With Bolts
2. Move the front fog light in the direction of the arrow shown in the figure to secure a space for cutting the front fog light hole cover.

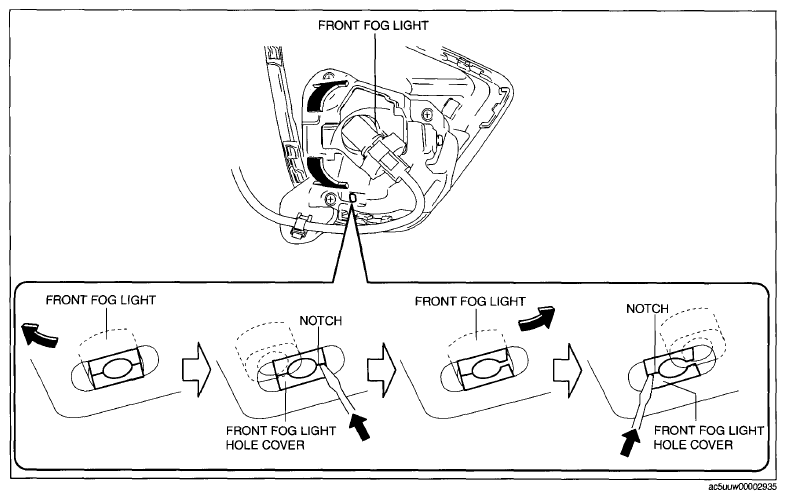

  Fig 6: Moving Front Fog Light
3. Press the notch of the front fog light hole cover using a flathead screwdriver and cutout the front fog light hole cover.
4. Cutout the hatch-marked area of the front fog light hole cover shown in the figure using a flathead screwdriver.
  NOTE:
  - Remove all the shaded area shown in the figure so that the front fog light hole cover does not interfere with the bolt.

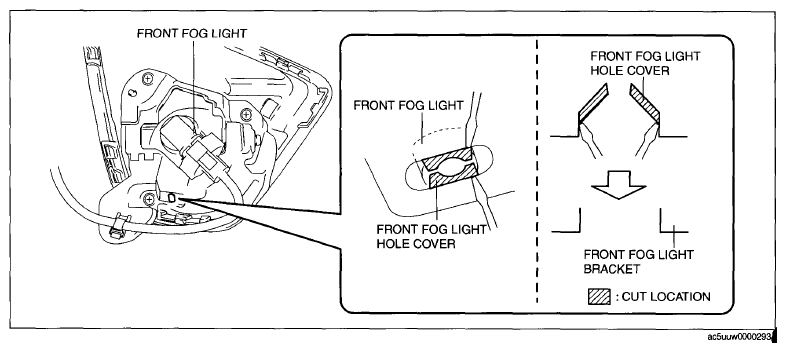

  Fig 7: Identifying Front Fog Light With Hole Cover
5. Temporarily tighten the bolt.
6. Move the front fog light in the direction of the arrow shown in the figure to adjust the brightness border line to the position indicated on the adjustment screen.

  Fig 8: Adjusting Brightness Border Line
7. Tighten the bolt.

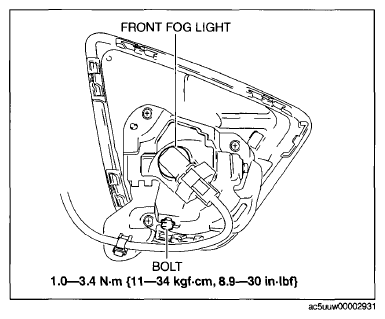

  Fig 9: Front Fog Light With Bolts And Torque Specifications
