When Using the M-MDS

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools equipped on the vehicle.
  2. Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION ).
  3. Move the vehicle to level ground.
  4. Connect the M-MDS to the DLC-2.
  5. After vehicle identification, select in the following order from the M-MDS initial screen.
    NOTE:
    • The AFS OFF indicator light continues flashing during the first initial setting, however, continue the work because it does not indicate an improper procedure.
    1. "Electrical"
    2. "Exterior Lighting"
    3. "Headlamp"
    4. "Auto Leveling Sensor"
    5. "Auto Leveling Sensors Calibration"

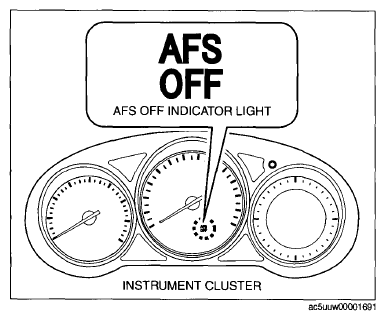

      Fig 1: Identifying AFS Off Indicator Light
      G09077478
  6. Verify that the AFS OFF indicator light flashes three times at 0.25 s  intervals and turns off as shown in the figure.
  7. Adjust the headlight aiming. (See HEADLIGHT AIMING ).
    Fig 2: AFS Off Indicator Light Timing Mode Pattern
    G09077479
