Section 67 (On-Board Diagnostic [Front Body Control Module])
›
Foreword [Front Body Control Module (FBCM)]
›
Troubleshooting Procedure
Troubleshooting Procedure
WARNING:
This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

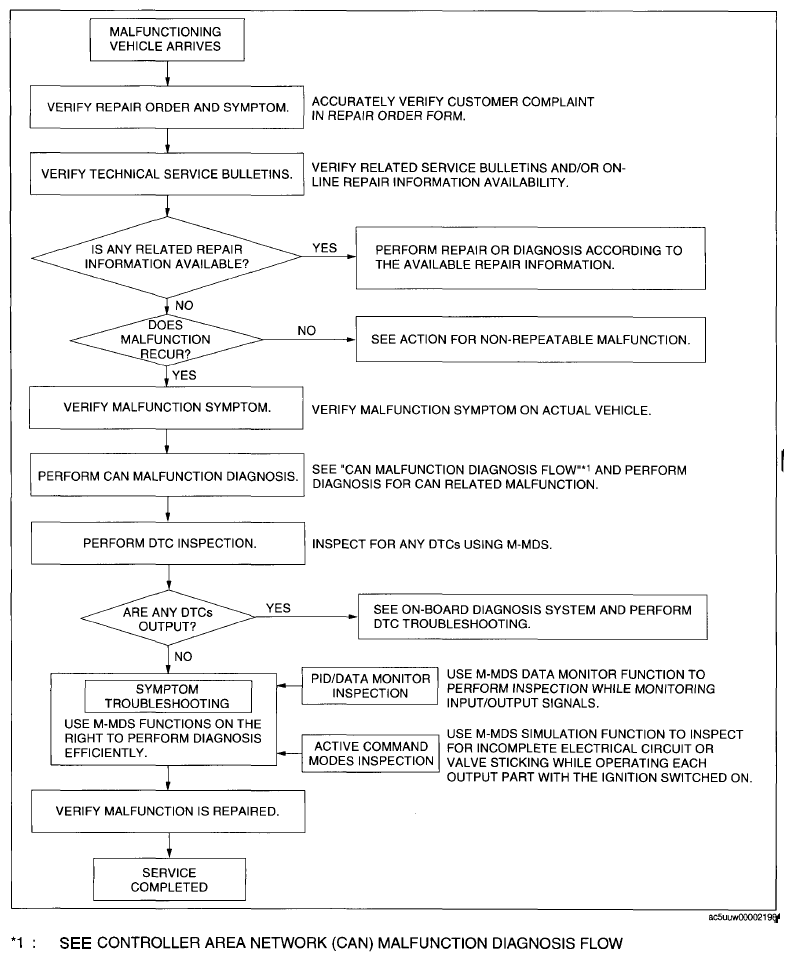

Fig 1: Troubleshooting Procedure Workflow Chart (FBCM)
