Data Link Connector
Data Link Connector
Fig 1: Data Link Connector Communication Diagram with Connector End View (00D-1A)
Courtesy of MAZDA MOTORS CORP.

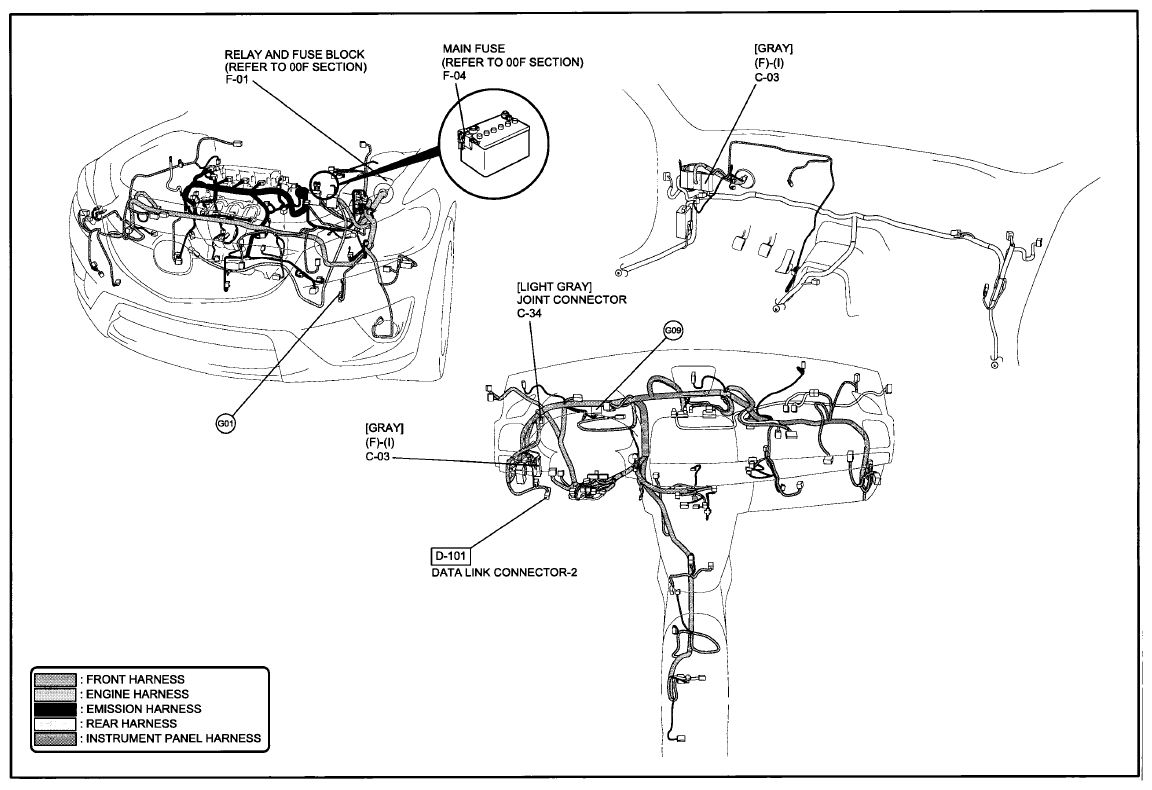

Fig 2: Data Link Connector Wiring Harness (00D-1A)
Courtesy of MAZDA MOTORS CORP.

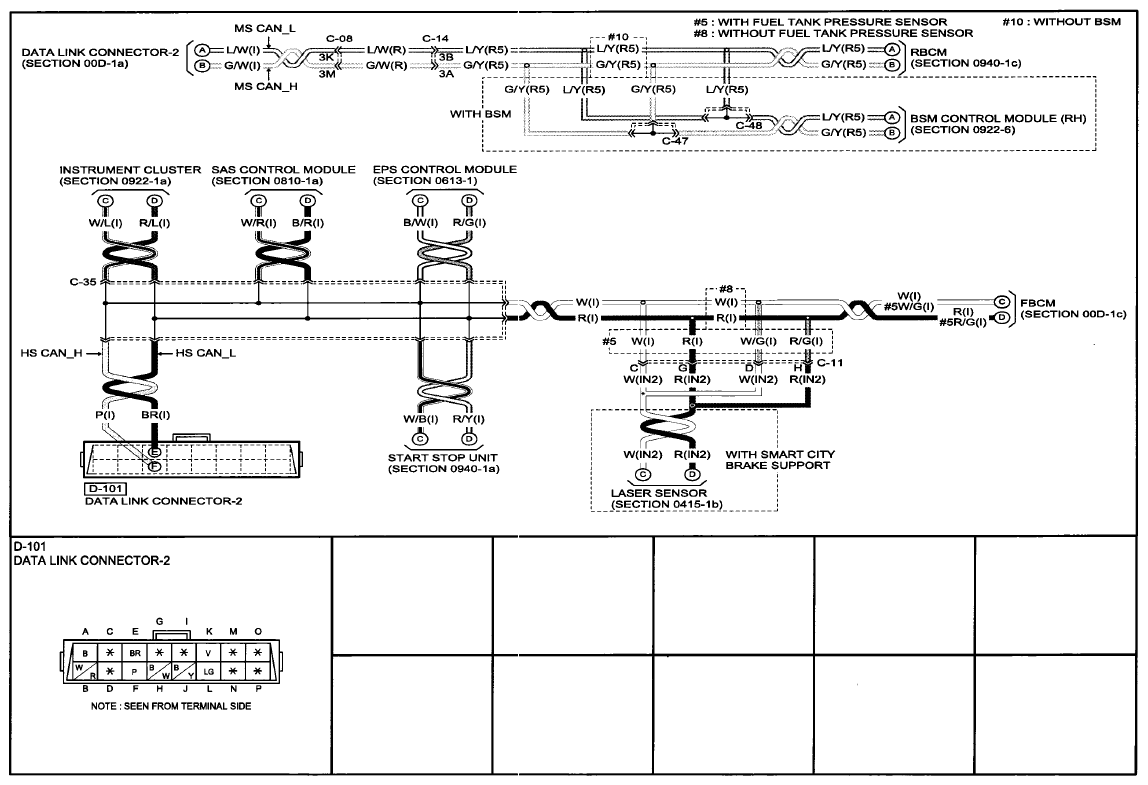

Fig 3: Data Link Connector Communication Diagram with Connector End View (00D-1B)
Courtesy of MAZDA MOTORS CORP.

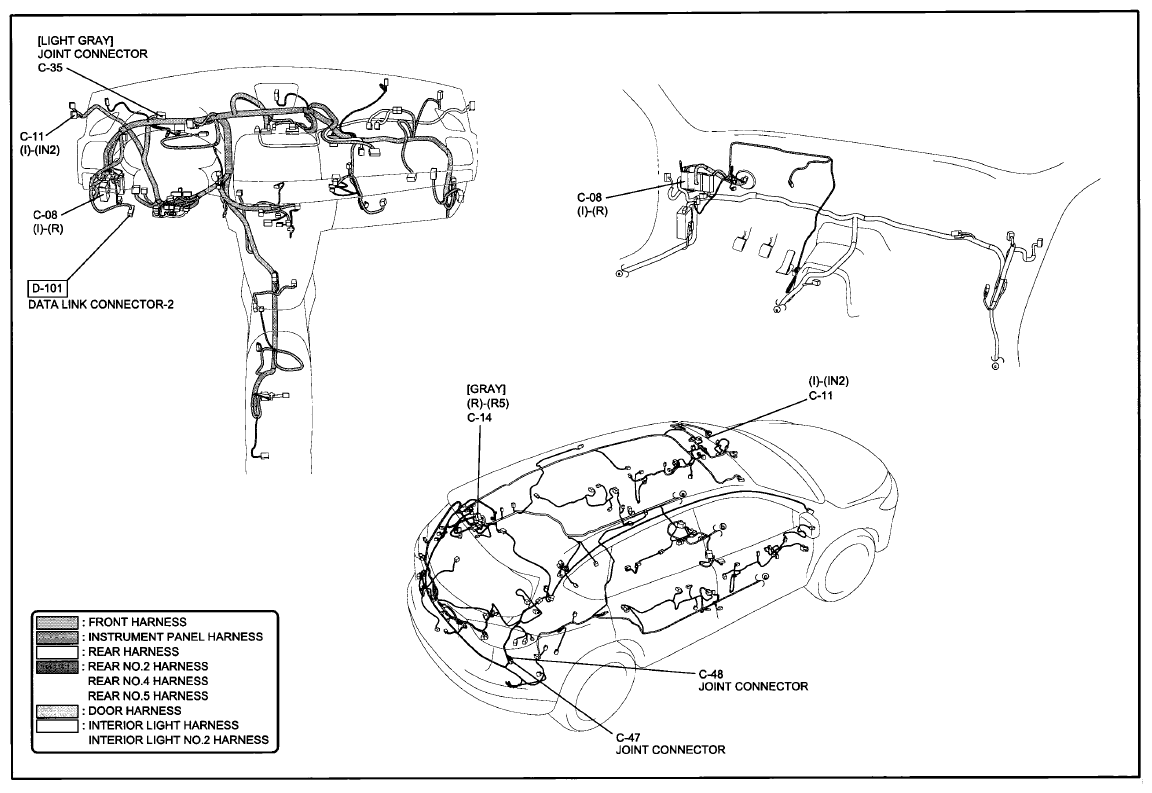

Fig 4: Data Link Connector Wiring Harness (00D-1B)
Courtesy of MAZDA MOTORS CORP.

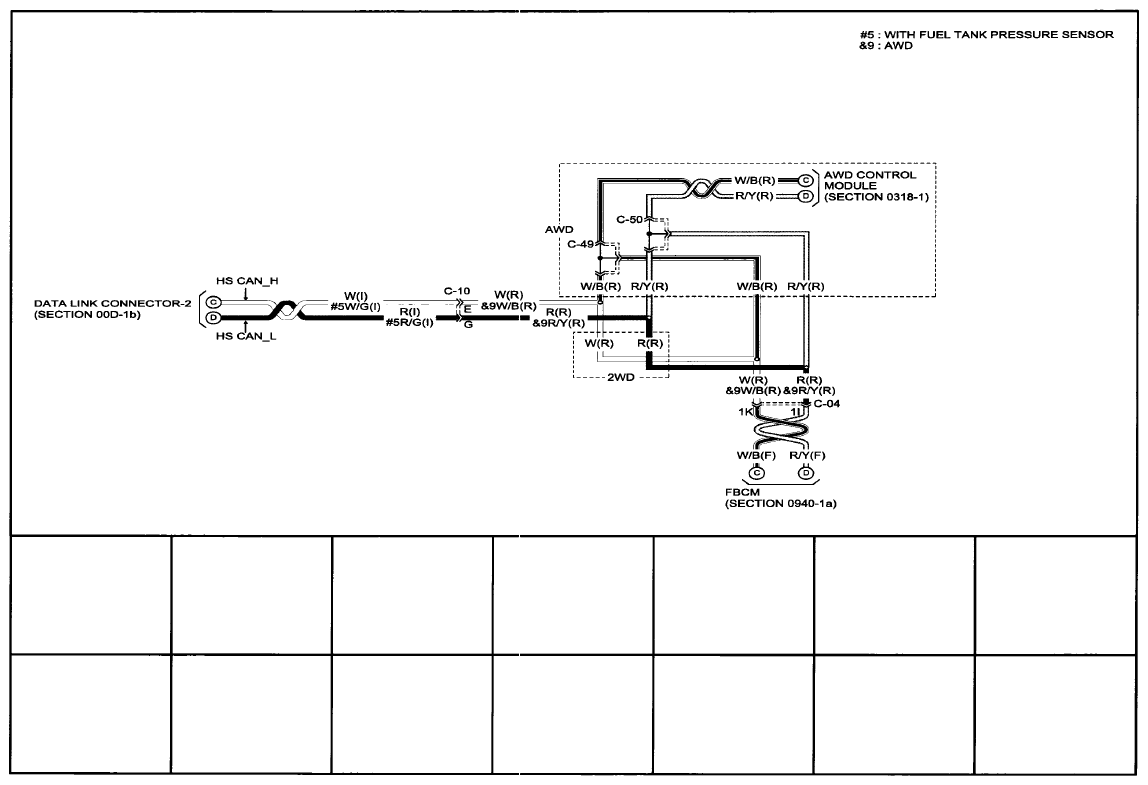

Fig 5: Data Link Connector Communication Diagram (00D-1C)
Courtesy of MAZDA MOTORS CORP.

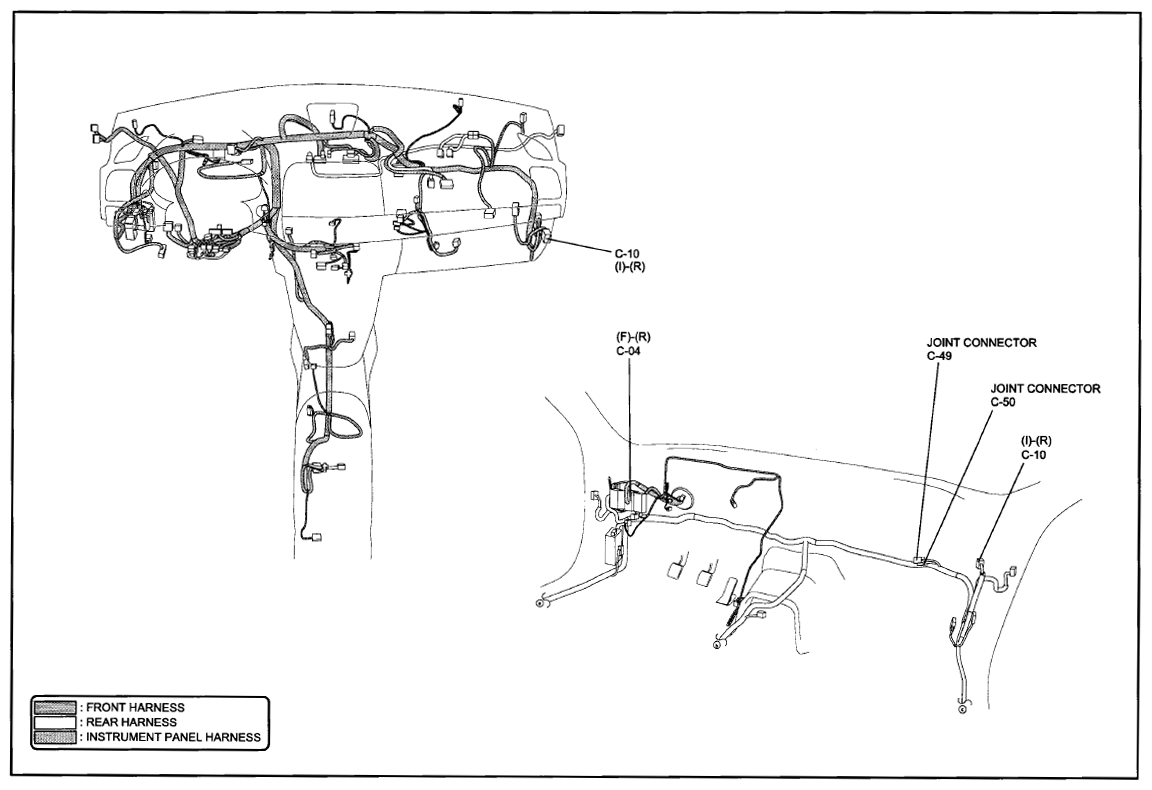

Fig 6: Data Link Connector Wiring Harness (00D-1C)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
