Automatic Transaxle Control System

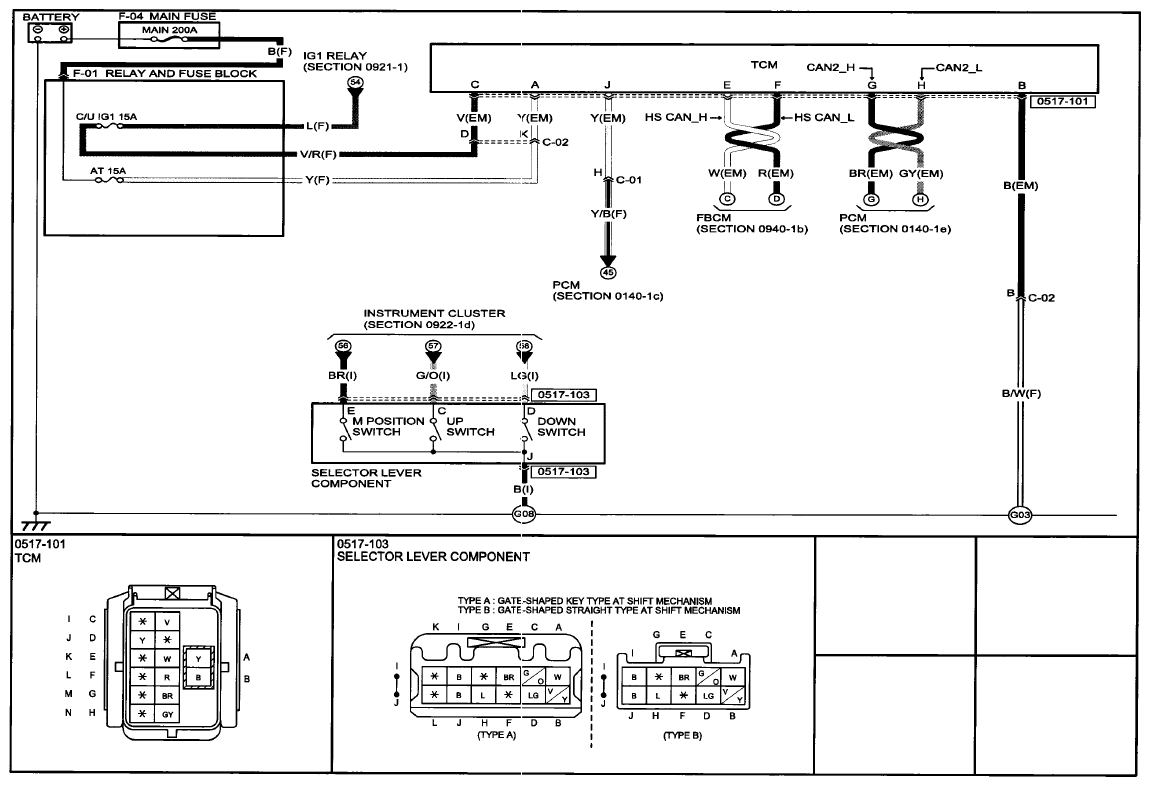

Fig 1: Automatic Transaxle Control System Communication Diagram with Connector End View (0517-1)
Courtesy of MAZDA MOTORS CORP.

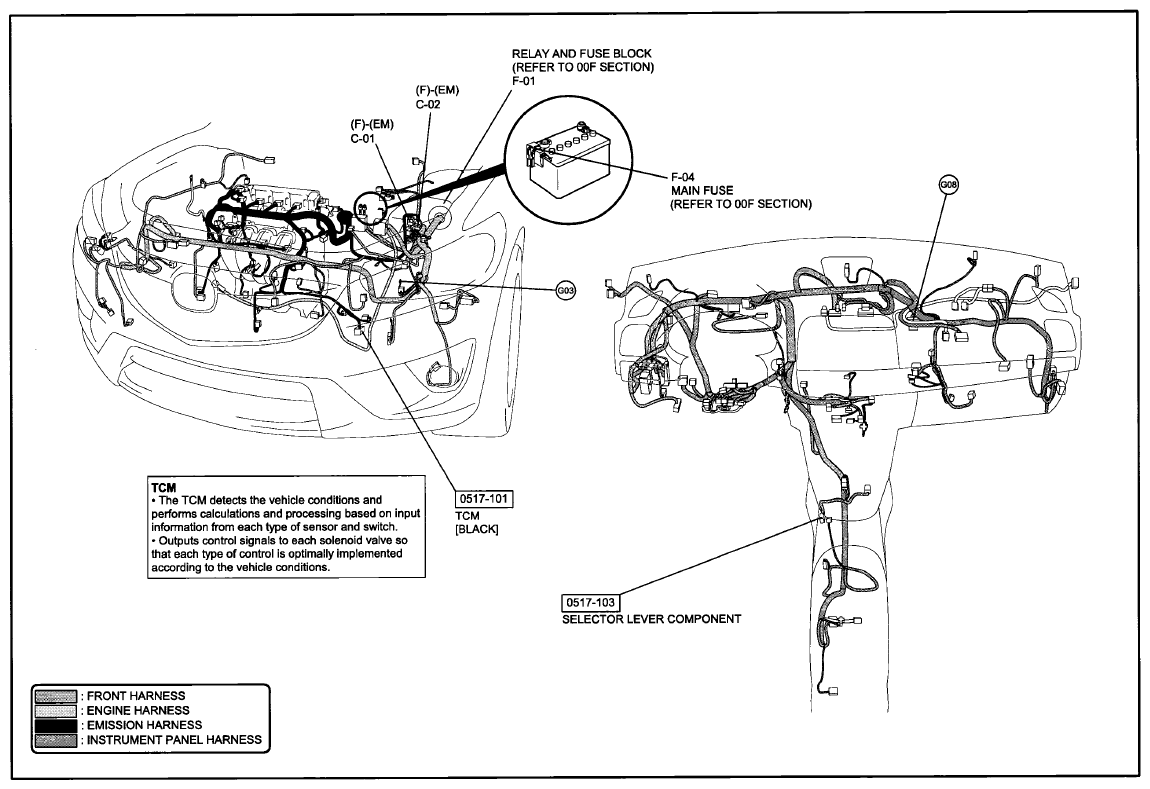

Fig 2: Automatic Transaxle Control System Wiring Harness Connectors (0517-1)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
