Clock Spring Inspection [Two-Step Deployment Control System]

Disconnect the negative battery cable and wait for 1 min or more . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace the clock spring.
  NOTE:
  - When the vehicle-side connector for the clock spring is disconnected, terminals 1 A, 1B, 1C and 1D are shorted to prevent unexpected operation (deployment) of the air bag module.

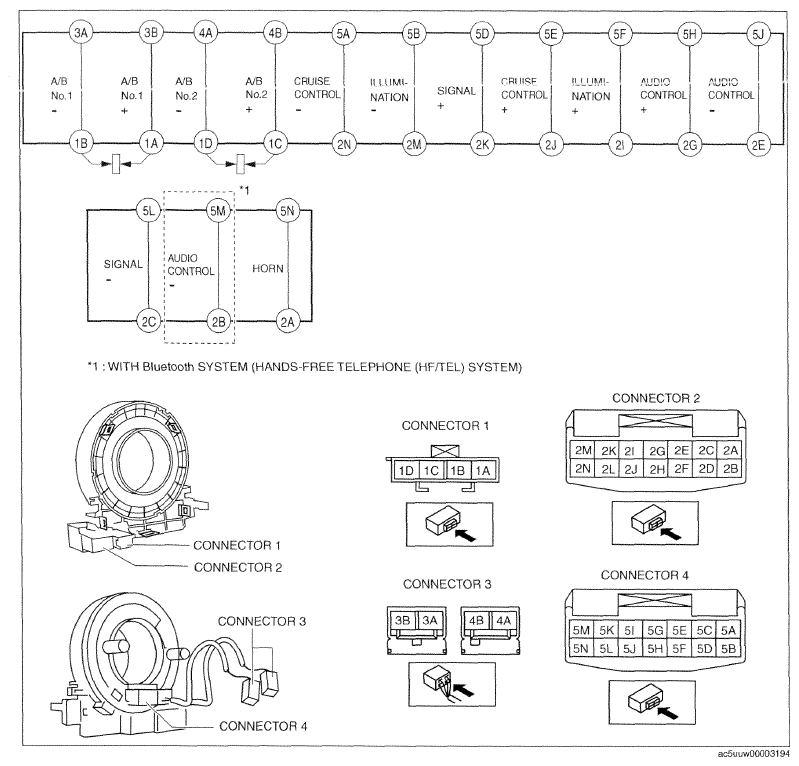

  Fig 1: Air Bag Module Terminal Continuity Reference Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Air Bag - System Diagram
  Courtesy of MAZDA MOTORS CORP.
