Driver-Side Air Bag Module Removal/Installation [Two-Step Deployment Control System]: Installation

CAUTION:

• If the driver-side air bag module is connected with the air bag module wiring harness and the horn switch wiring harness crossing over each other, the wiring harnesses could become tangled and damaged. When connecting the connectors, be careful that the wiring harnesses are not crossed over each other.

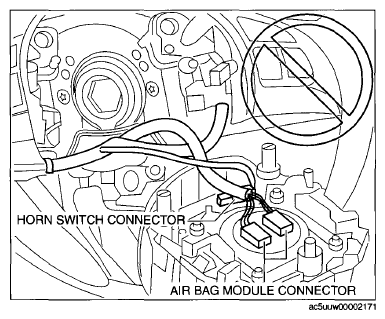

Fig 1: Caution For Air Bag Module Wiring Harness And Horn Switch Connector

Courtesy of MAZDA MOTORS CORP.

1. Point the upper side of the driver-side air bag module towards the steering wheel and connect the following connectors as shown in the figure.
   • Air bag module connector.
   • Horn switch connector
2. Rotate the driver-side air bag module counterclockwise 180 degrees.

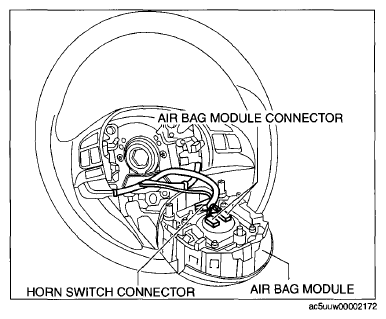

   Fig 2: Identifying Air Bag Module, Connector And Horn Switch Connector

   Courtesy of MAZDA MOTORS CORP.
   Fig 3: Rotating Driver-Side Air Bag Module Counterclockwise 180 Degrees

   Courtesy of MAZDA MOTORS CORP.
3. Align the driver-side air bag module pin with the steering wheel hole.
   Fig 4: Locating Driver-Side Air Bag Module Pin

   Courtesy of MAZDA MOTORS CORP.
4. Press the pin of the driver-side air bag module until a click sound is heard.
5. Verify that the quick release connector is securely attached by lightly pulling the driver-side air bag module.
6. Switch the ignition ON (engine off or on).
7. Verify that the air bag system warning light illuminates for approx. 6 s  and goes out.
   • If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
