Automatic Transaxle Shift Mechanism Location Index

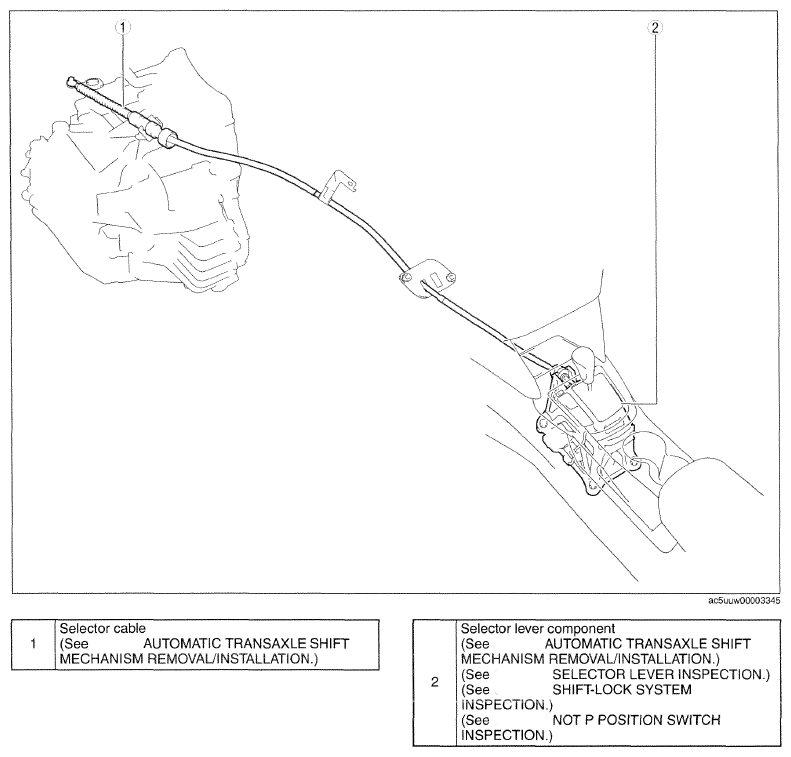

Fig 1: Automatic Transaxle Shift Selector Cable
G09759680Courtesy of MAZDA MOTORS CORP.
