Control System Diagram

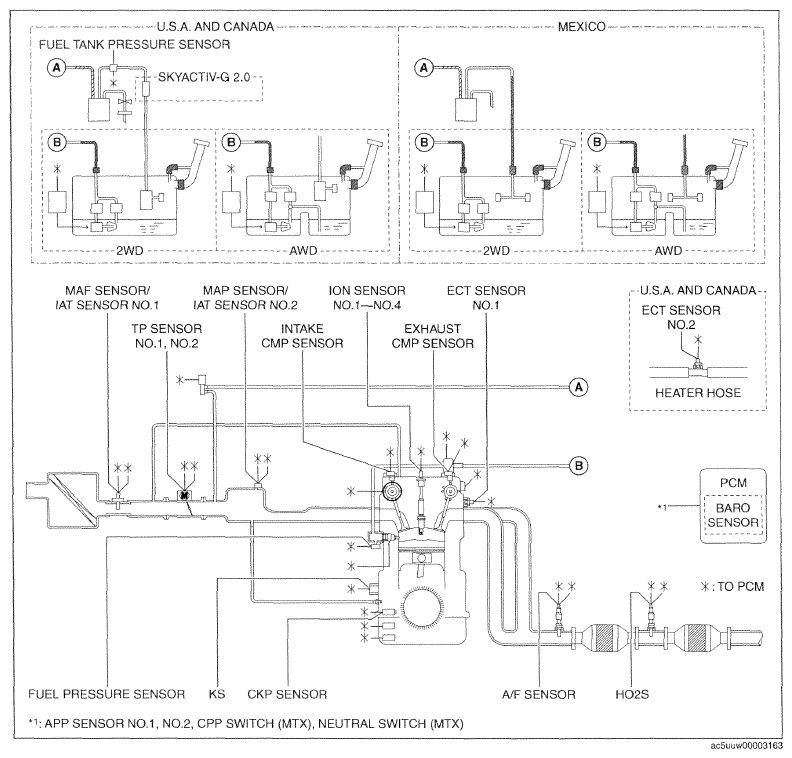

Fig 1: Control - System Diagram (Skyactiv-G 2.0, Skyactiv-G 2.5)
G09758670Courtesy of MAZDA MOTORS CORP.
