Except Engine Compartment

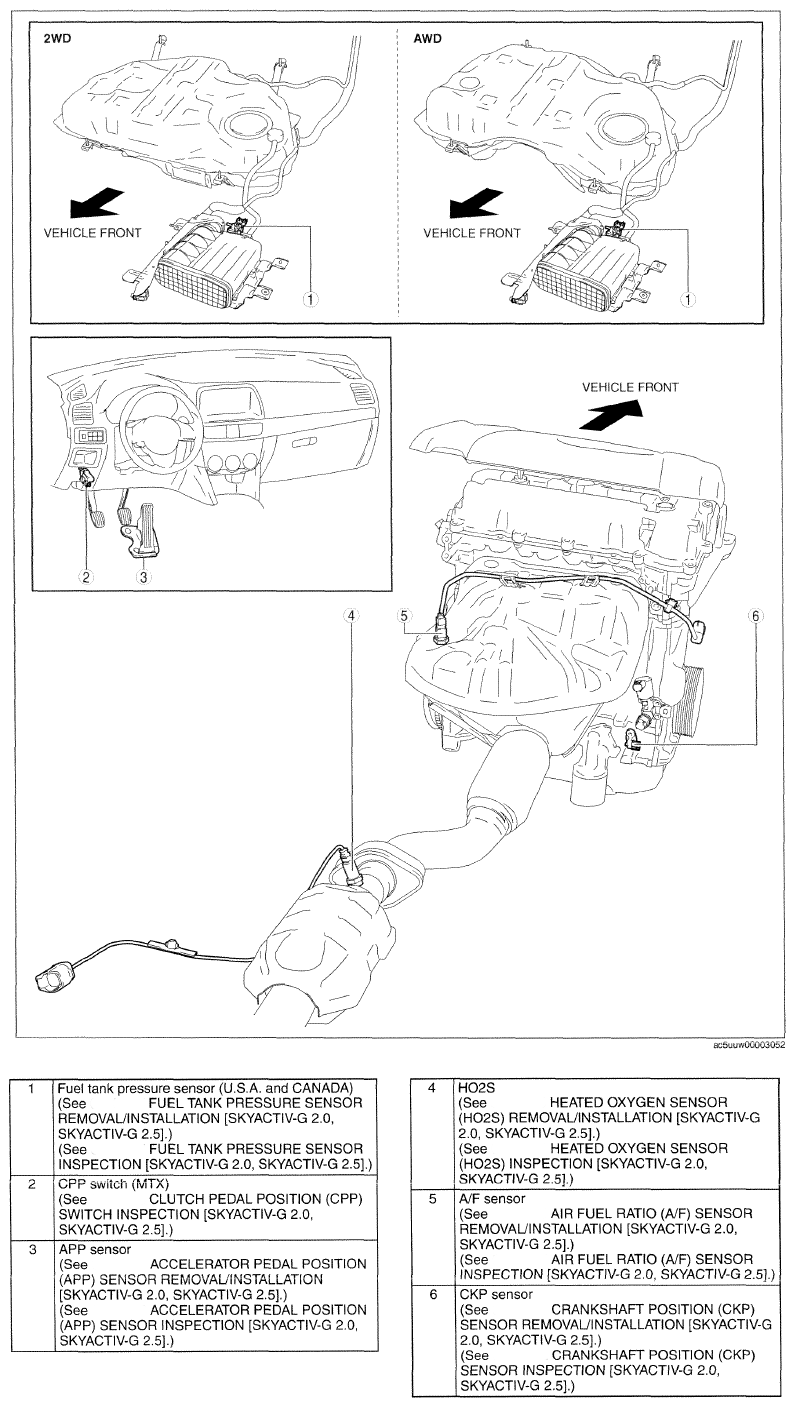

Fig 1: Control System Location Components (Skyactiv-G 2.0, Skyactiv-G 2.5) - Except Engine Compartment
G09758669Courtesy of MAZDA MOTORS CORP.
