PCM Assembly Installation Note

  1. Install the PCM assembly shown in the figure.

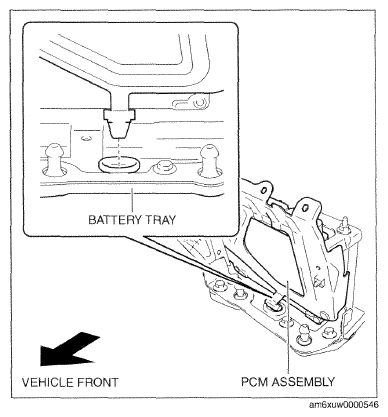

    Fig 1: Installing PCM Assembly
    G09758679Courtesy of MAZDA MOTORS CORP.
