Rear Map Light

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
To prevent scratches or damage, affix protective tape to the position shown in the figure.
CAUTION:
- If a flathead screwdriver is inserted into the gap between the rear map light and lens, the rear map light could interfere with the flathead screwdriver resulting in damage to the rear map light. When removing the lens from the rear map light, perform the procedure after affixing protective tape to the rear map light.

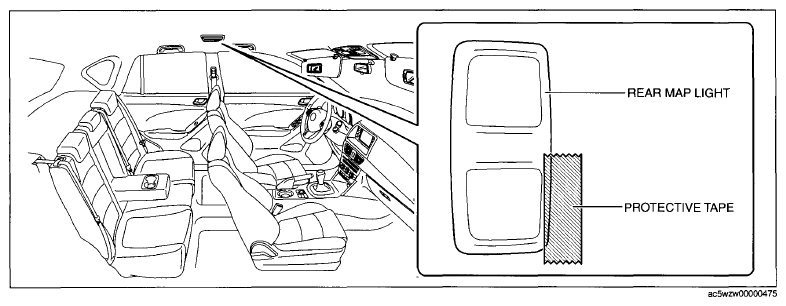

Fig 1: Identifying Protective Tape Application Area On Rear Combination Lamp
Press the lens to secure a sufficient space for inserting a flathead screwdriver.

Fig 2: Pressing Lens
Insert a tape-wrapped flathead screwdriver into the gap between the lens and rear map light shown in the figure.

Fig 3: Inserting Tape-Wrapped Flathead Screwdriver Into Gap Between Lens And Rear Map Light
Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, pull out the lens from the rear map light, and detach the rear map light pin and lens.

Fig 4: Detaching Rear Map Light Pin And Lens
Remove the lens.

Fig 5: Identifying Rear Map Light And Lens
Move the rear map light spring in the direction of the arrow (2) shown in the figure and detach the rear map light spring and rear map light bulb.

Fig 6: Removing Rear Map Light Spring And Rear Map Light Bulb
Remove the rear map light bulb.
Install in the reverse order of removal.

Fig 7: Identifying Rear Map Light Bulb
