Rear Differential Disassembly: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
- The engine stand is equipped with a self-lock mechanism, however, if the rear differential is in a tilted condition, the self-lock mechanism could become inoperative. If the rear differential unexpectedly rotates it could cause injury, therefore do not maintain the rear differential in a tilted condition. When turning the rear differential, grasp the rotation handle firmly.

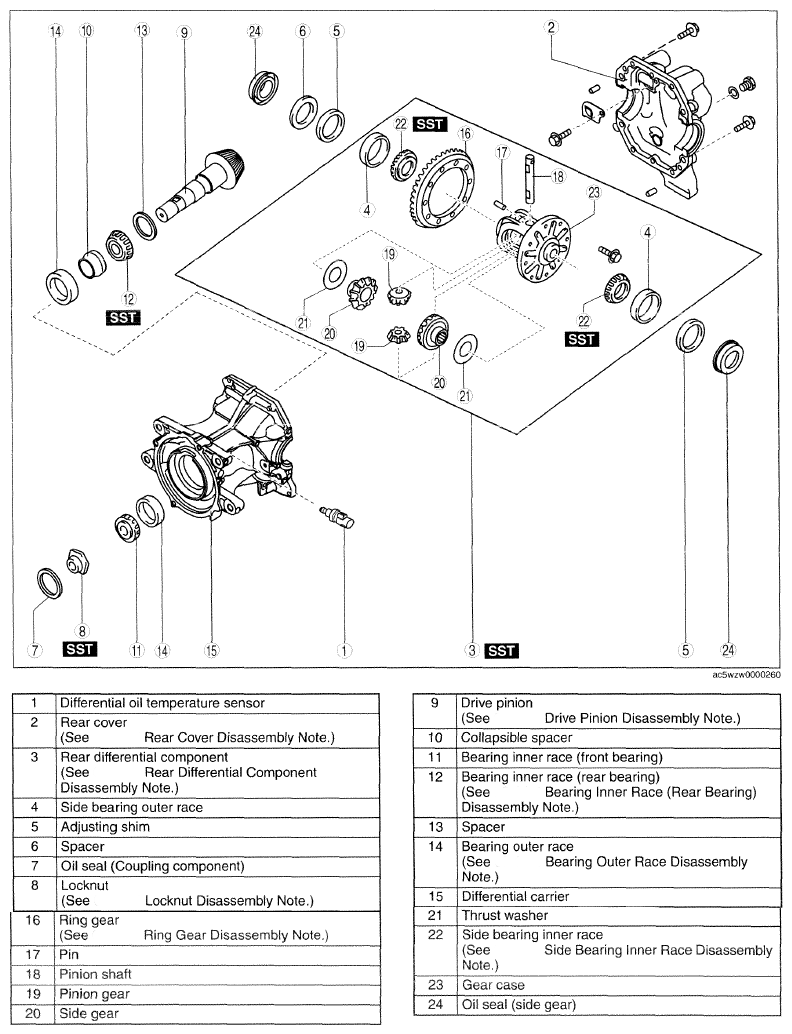

- Disassemble in the order indicated in the table.
