Back-Up Light Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

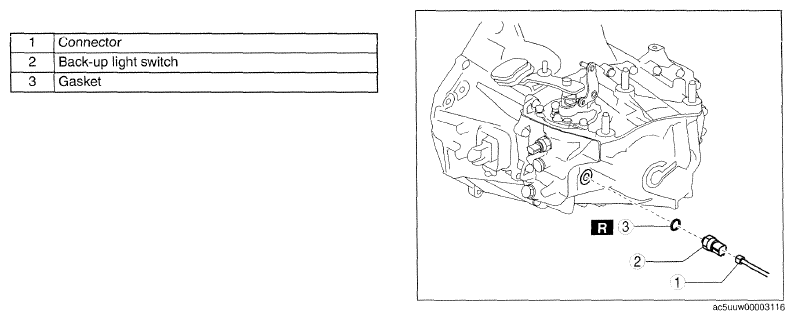

    Fig 1: Connector, Backup Light Switch And Gasket With Torque Specifications
    G09759397Courtesy of MAZDA MOTORS CORP.
  4. Install in the order indicated in the table.

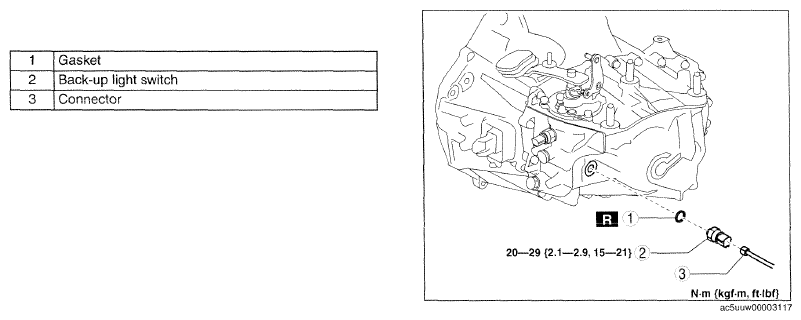

    Fig 2: Connector, Backup Light Switch And Gasket Installing Sequence With Torque Specifications
    G09759398Courtesy of MAZDA MOTORS CORP.
  5. Install the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  6. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
