Neutral Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the air cleaner component (air cleaner, air hose). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

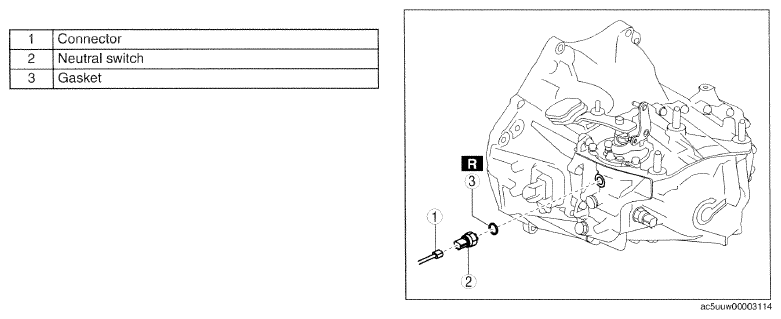

    Fig 1: Connector, Neutral Switch And Gasket Loosening Sequence
    G09759395Courtesy of MAZDA MOTORS CORP.
  4. Install in the order indicated in the table.

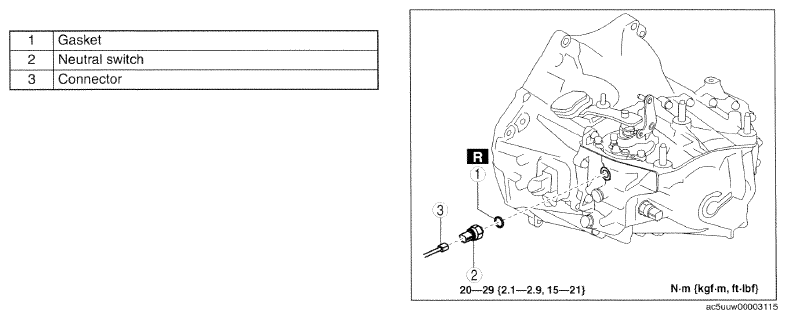

    Fig 2: Connector, Neutral Switch And Gasket Installing Sequence With Torque Specifications
    G09759396Courtesy of MAZDA MOTORS CORP.
  5. Install the air cleaner component (air cleaner, air hose). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  6. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
