Blower Unit Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Front scuff plate (passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    5. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Disconnect the blower motor connector.
  4. Disconnect the air intake actuator connector.
    Fig 1: Air Intake Actuator Connector And Blower Motor Connector
    G09759878Courtesy of MAZDA MOTORS CORP.
  5. Remove the blower unit installation nuts.

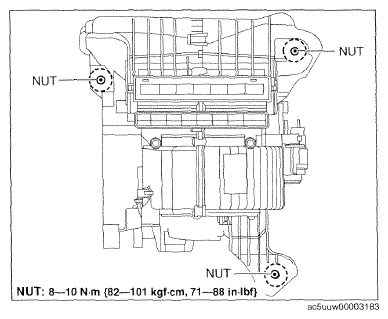

    Fig 2: Blower Unit Installation Nuts With Torque Specifications
    G09759879Courtesy of MAZDA MOTORS CORP.

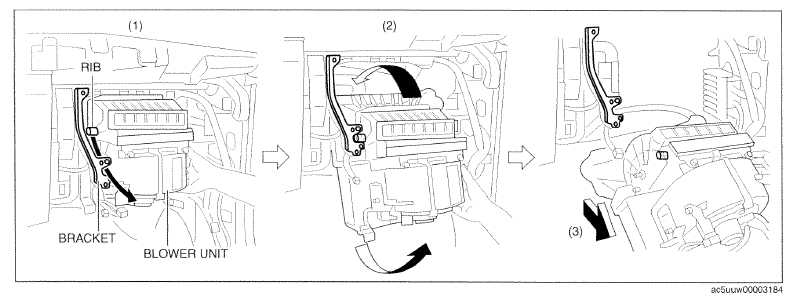

  6. Pass the blower unit projection between the brackets shown in the figure (1) and rotate the blower unit (2).
    Fig 3: Passing Blower Unit Projection Between Brackets
    G09759880Courtesy of MAZDA MOTORS CORP.
  7. Pull out the blower unit in the direction of the arrow (3).
  8. Remove the blower unit.
  9. Install in the reverse order of removal.
    Fig 4: Removing Blower Unit
    G09075756Courtesy of MAZDA MOTORS CORP.
