Oil Pressure Switch B

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  3. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
  4. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  5. Remove the oil pan.
    CAUTION:
    • To avoid damaging the control valve body, if there is a large amount of foreign material at the bottom of the oil pan when the oil pan is removed, replace the oil strainer with a new one.
    • If there is not a large amount of foreign material at the bottom of the oil pan, the oil strainer does not have to be replaced.
    NOTE:
    • Always use new oil pan installation bolts when re-installing the oil pan because the oil pan installation bolts cannot be reused.
  6. Remove the oil strainer. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
  7. Remove the oil strainer O-ring. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
  8. Insert a precision flathead screwdriver and move it in the direction of the arrow to disconnect the oil pressure switch B connector as shown in the figure.
    CAUTION:
    • Do not scratch the oil pressure switch B and oil pressure switch connector B with the precision flathead screwdriver.
    • When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.

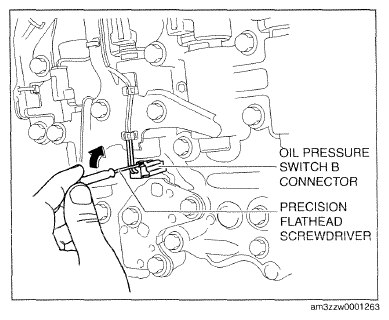

    Fig 1: Disconnecting Oil Pressure Switch B Connector
    G09759513Courtesy of MAZDA MOTORS CORP.
  9. Remove the oil pressure switch B.

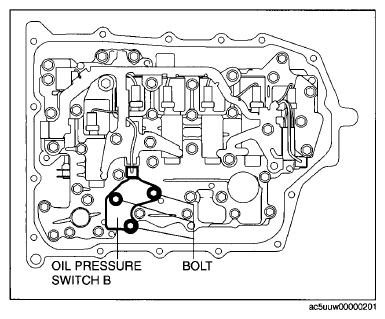

    Fig 2: Identifying Oil Pressure Switch And Mounting Bolts
    G09075434Courtesy of MAZDA MOTORS CORP.
  10. Install the oil pressure switch B.

    Tightening torque 9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}

    Fig 3: Identifying Oil Pressure Switch And Mounting Bolts
    G09075434Courtesy of MAZDA MOTORS CORP.
  11. Connect the oil pressure switch B connector.
  12. Install the oil strainer O-ring. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
    NOTE:
    • If there is a large amount of foreign material at the bottom of the oil pan, replace the oil strainer with a new one.
  13. Install the oil strainer. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)

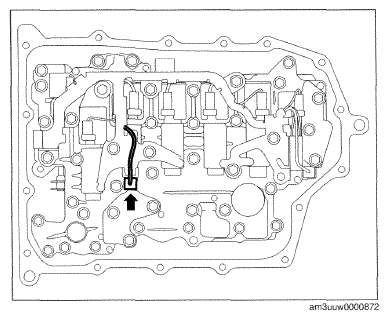

    Fig 4: Identifying Oil Pressure Switch Connector
    G09759516Courtesy of MAZDA MOTORS CORP.
  14. Apply a light coat of silicon sealant (TB1217E or equivalent) to the contact surfaces of the oil pan and transaxle case.
    CAUTION:
    • Clean any remaining silicone sealant on the contact surface of the transaxle case and oil pan, and degrease the sealant area. Otherwise, oil could leak.
    Fig 5: Applying Silicon Sealant To Contact Surfaces Of A/T Oil Pan
    G09759517Courtesy of MAZDA MOTORS CORP.
  15. Install the oil pan with new bolts before the applied sealant starts to harden.

    Tightening torque 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}

  16. Install the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  17. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
    Fig 6: Identifying Oil Pan And Bolts
    G09759518Courtesy of MAZDA MOTORS CORP.
  18. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  19. Perform the "Initial Learning" (oil pressure switch B replacement). (See INITIAL LEARNING .)
  20. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
