Keyless Control Module

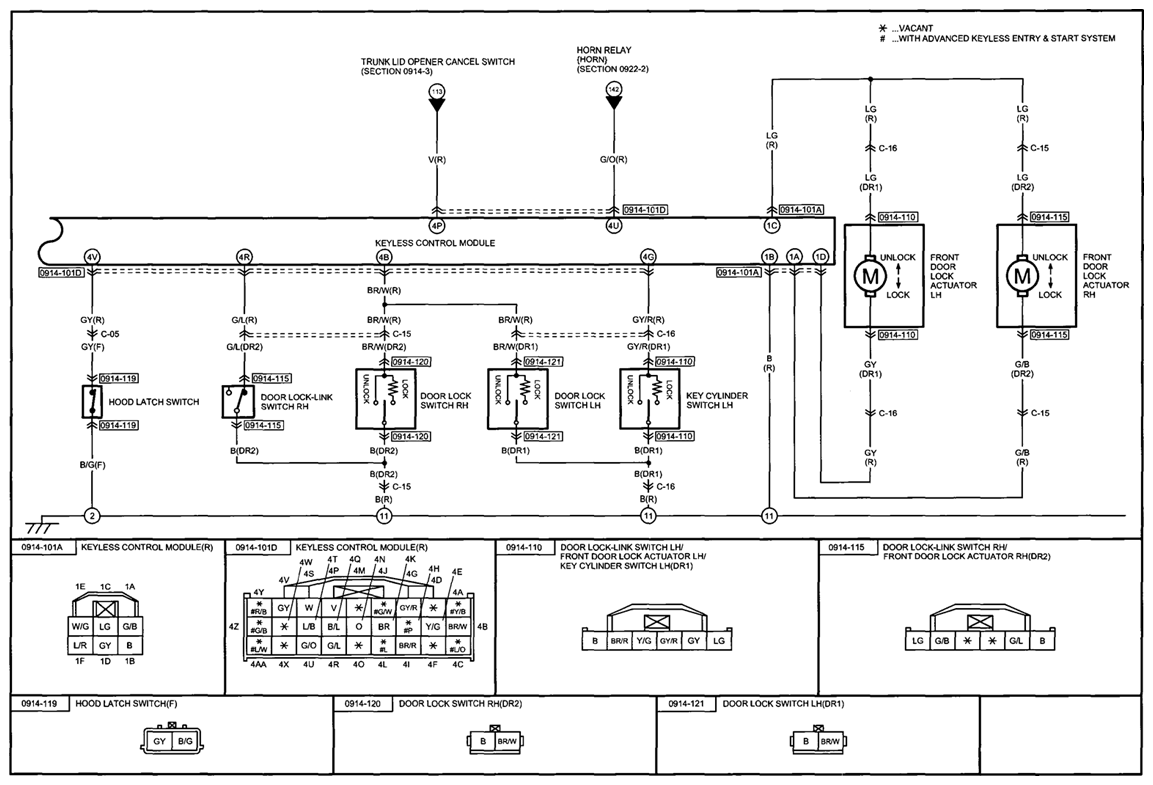

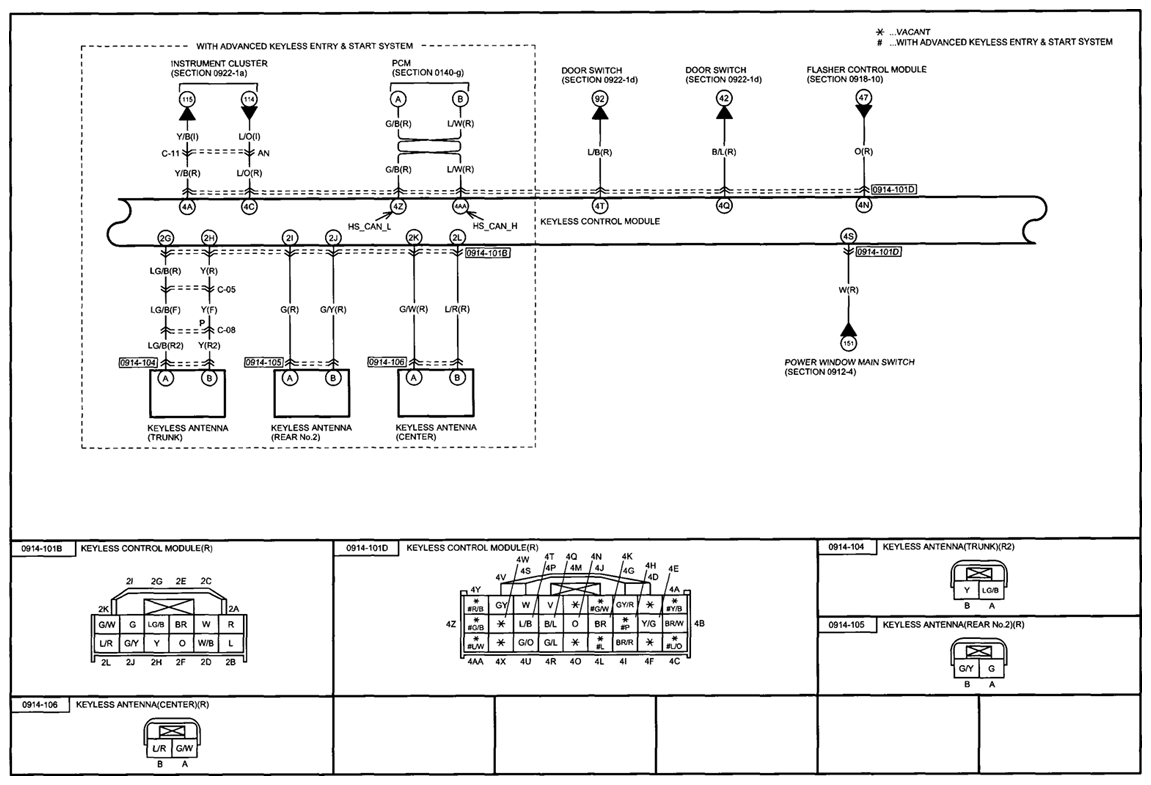

Fig 1: Keyless Control Module - Circuit Diagram (0914-1A)

Courtesy of MAZDA MOTORS CORP.

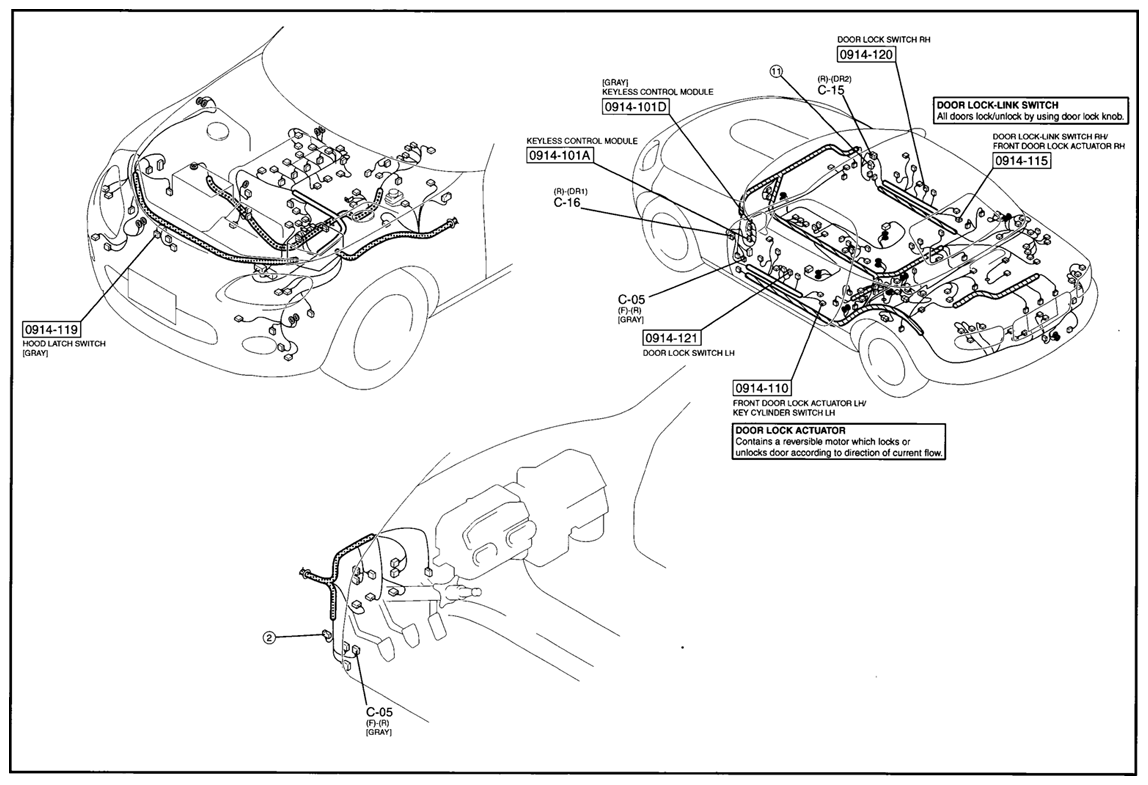

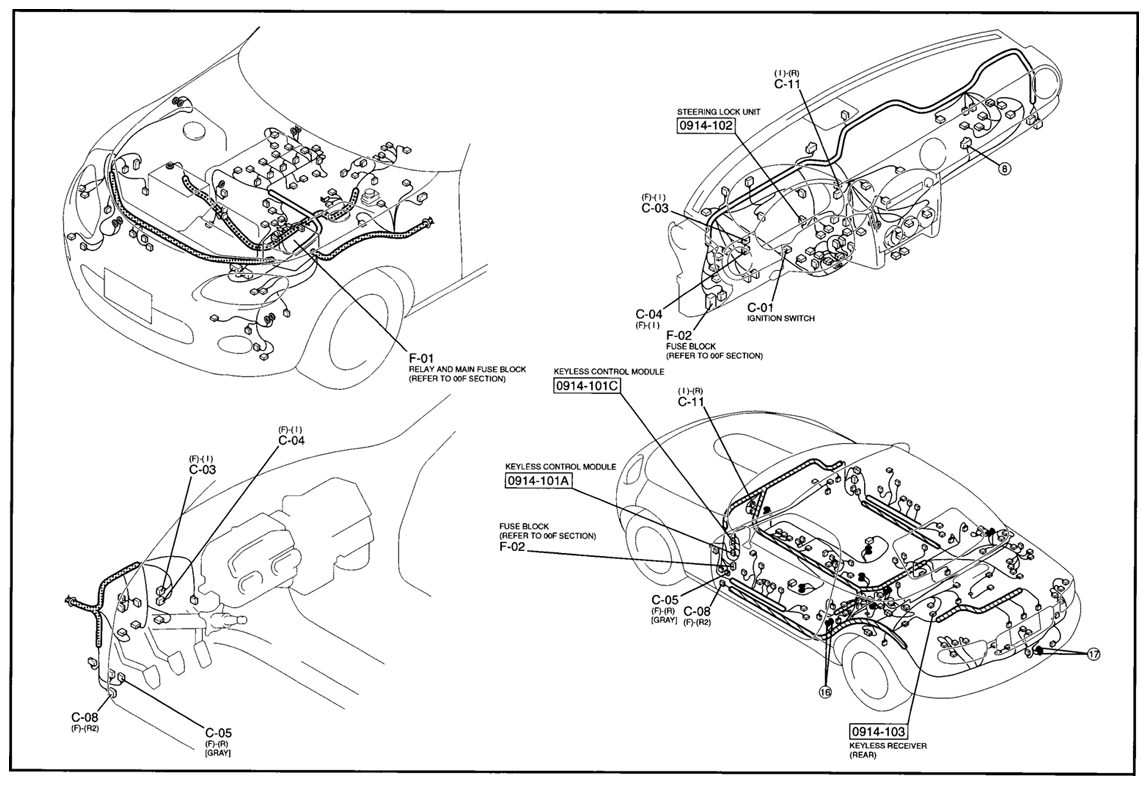

Fig 2: Keyless Control Module Wiring Harness Layout (0914-1A)

Courtesy of MAZDA MOTORS CORP.

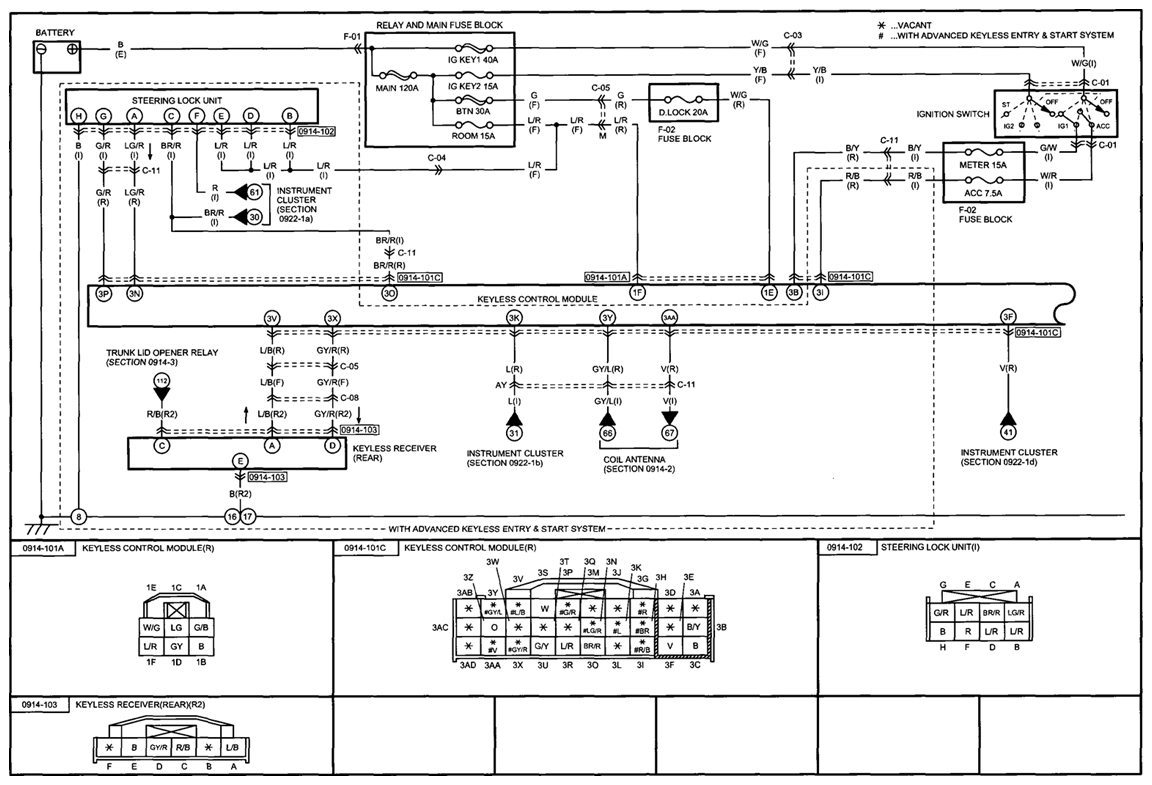

Fig 3: Keyless Control Module - Circuit Diagram (0914-1B)

Courtesy of MAZDA MOTORS CORP.

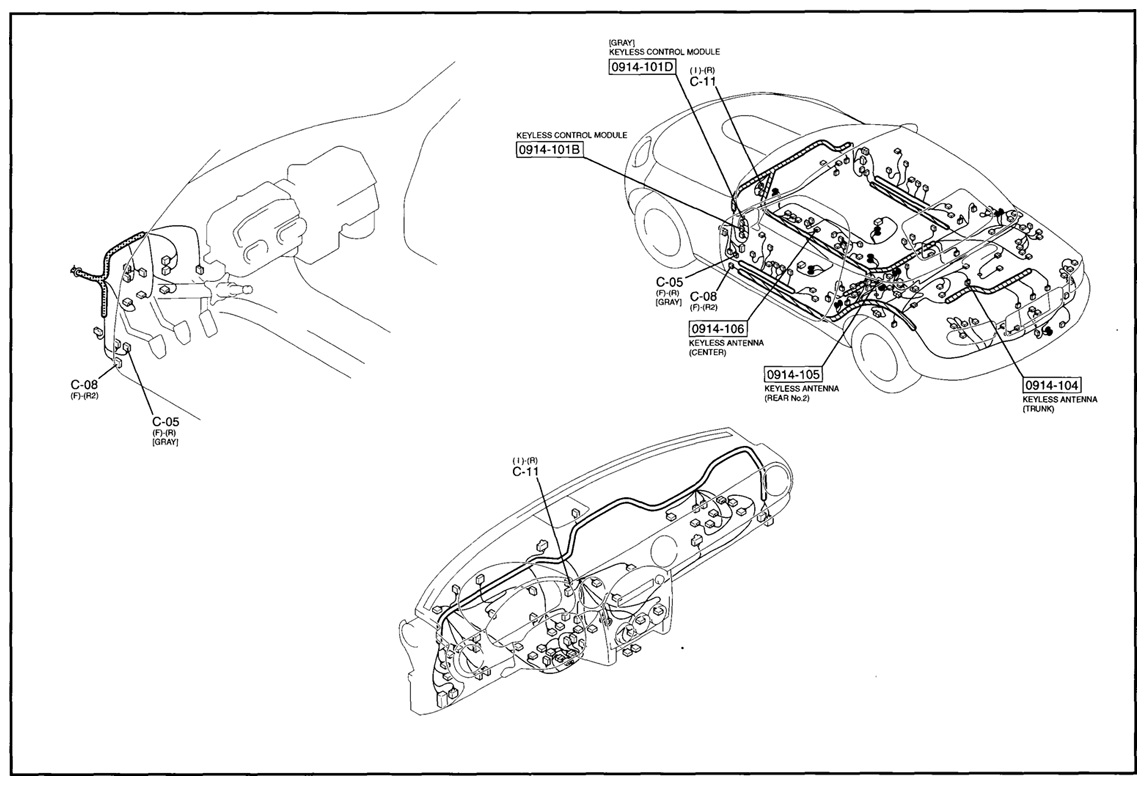

Fig 4: Keyless Control Module Wiring Harness Layout (0914-1B)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Keyless Control Module - Circuit Diagram (0914-1C)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Keyless Control Module Wiring Harness Layout (0914-1C)

Courtesy of MAZDA MOTORS CORP.

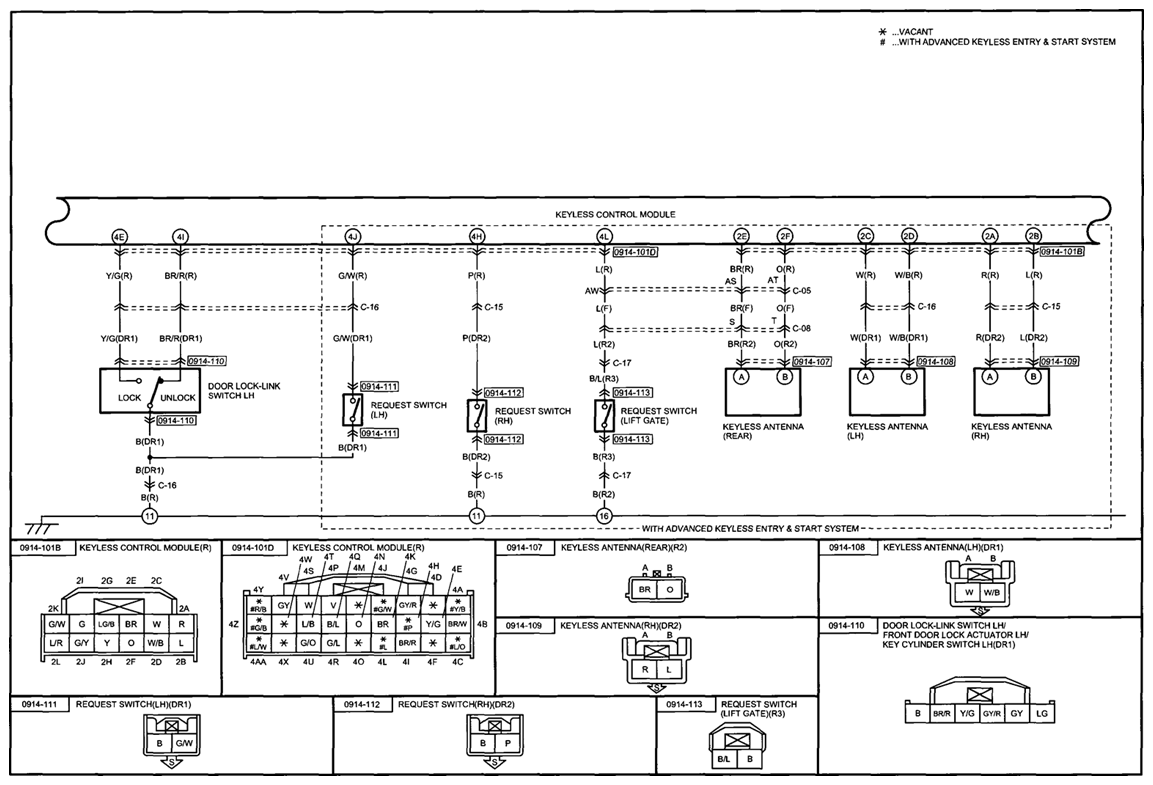

Fig 7: Keyless Control Module - Circuit Diagram (0914-1D)

Courtesy of MAZDA MOTORS CORP.

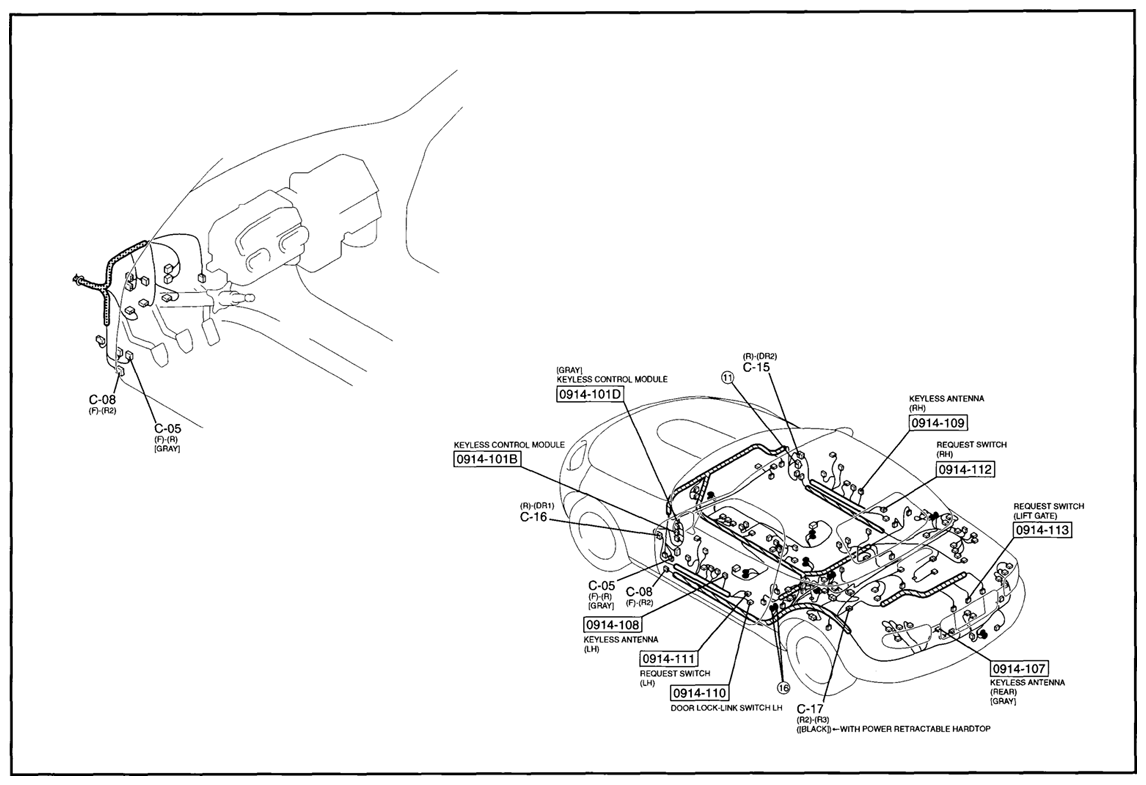

Fig 8: Keyless Control Module Wiring Harness Layout (0914-1D)

Courtesy of MAZDA MOTORS CORP.

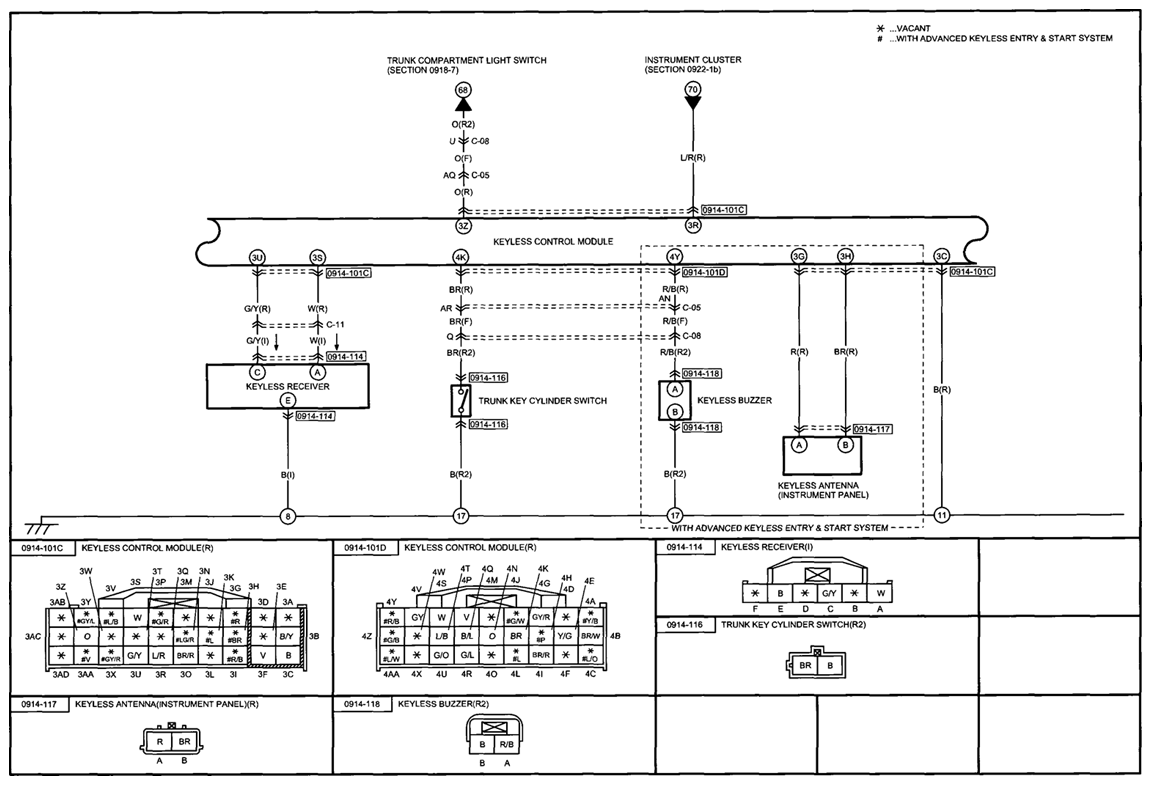

Fig 9: Keyless Control Module - Circuit Diagram (0914-1E)

Courtesy of MAZDA MOTORS CORP.

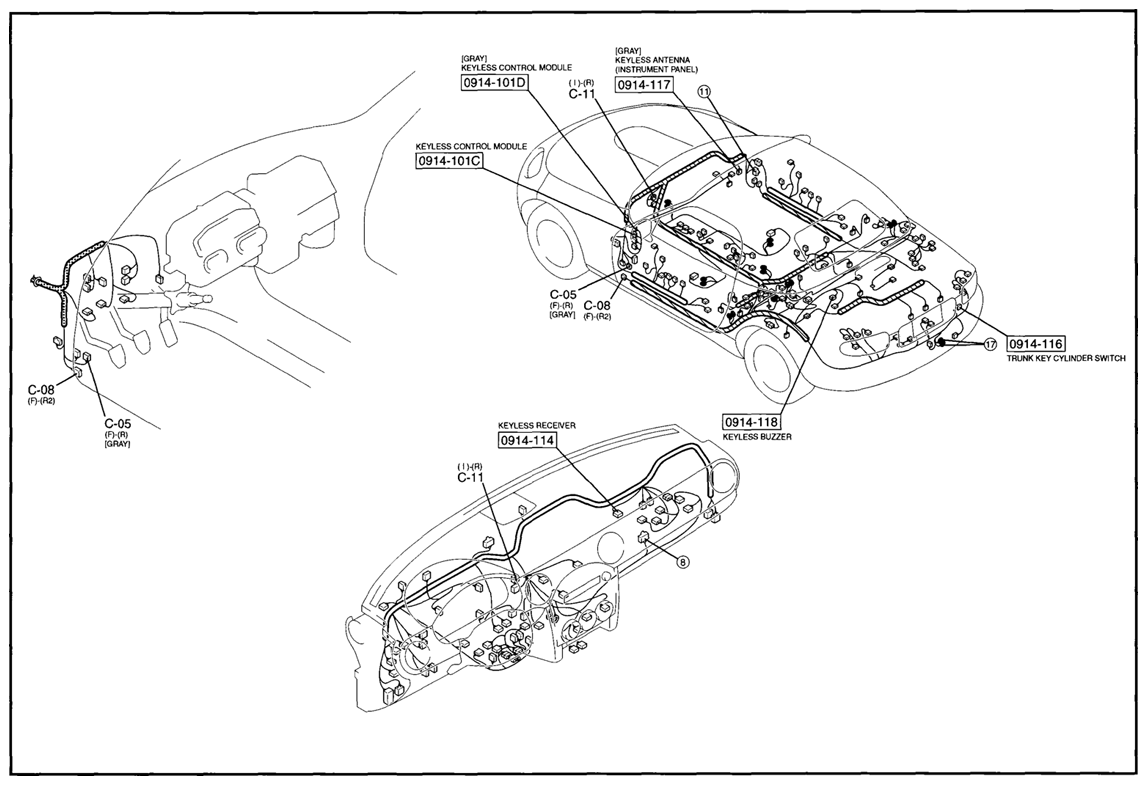

Fig 10: Keyless Control Module Wiring Harness Layout (0914-1E)

Courtesy of MAZDA MOTORS CORP.
