A/C Compressor Installation Note
CAUTION:
- Due to the high moisture-absorption characteristics of the compressor oil, it may absorb moisture if left over a long period of time thereby negatively affecting A/C operation. Drain the compressor oil and refill within 10 min. of each other.

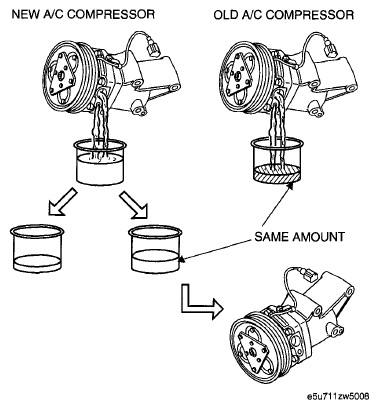

- Rotate new A/C compressor shaft six to eight revolutions while draining new refrigerant oil in a clean measuring device. Use this refrigerant oil to refill new compressor. Do not allow refrigerant oil to become contaminated.
- Rotate old A/C compressor shaft six to eight revolutions while draining old refrigerant oil in a separate, clean measuring device.
- Compare those oil amounts. The amount of the oil drained from the new A/C compressor should be greater than the old one.
- Pour the same amount oil of drained from the old A/C compressor back into the new A/C compressor.
A/C compressor oil type DH-PR
A/C compressor oil sealed volume (approx. quantity) 130 ml {130 cc, 4.39 fl oz.}
