A/C Unit Disassembly/Assembly: Notes

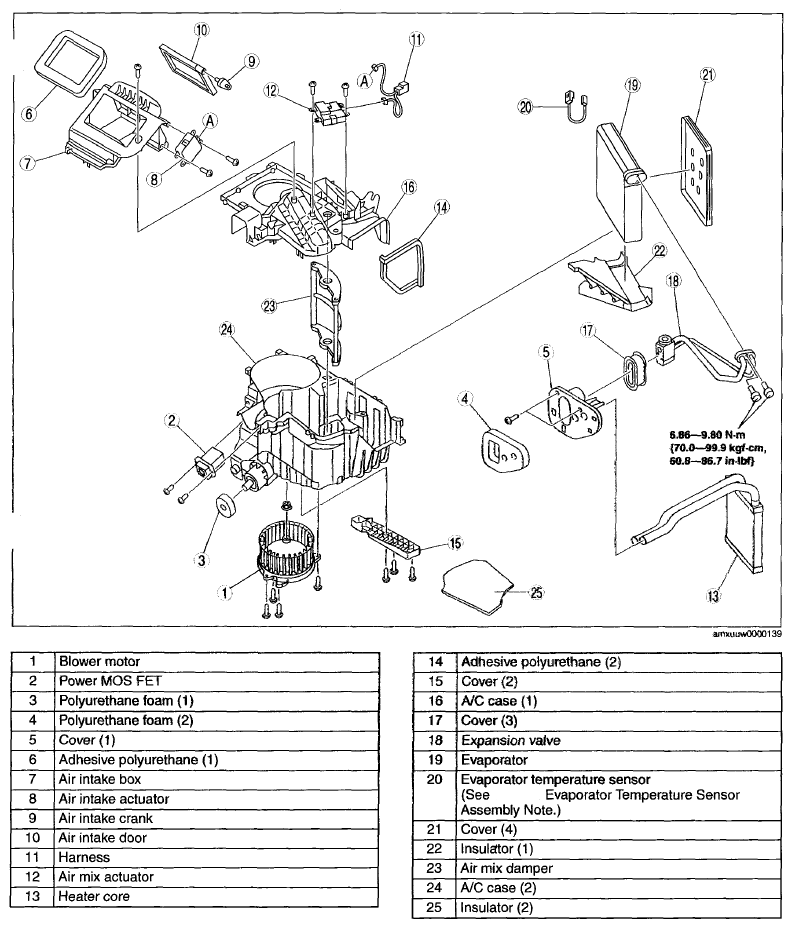

- Disassemble in the order indicated in illustration.
CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.
- If the air mix damper is removed and reinstalled improperly because the original installation position cannot be specified, the air mix damper and air mix actuator may be damaged when it is operated. Therefore, set the air mix to the middle position before disassembling so that the installation position can be specified.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
