Air Dist Unit Disassembly/Assembly

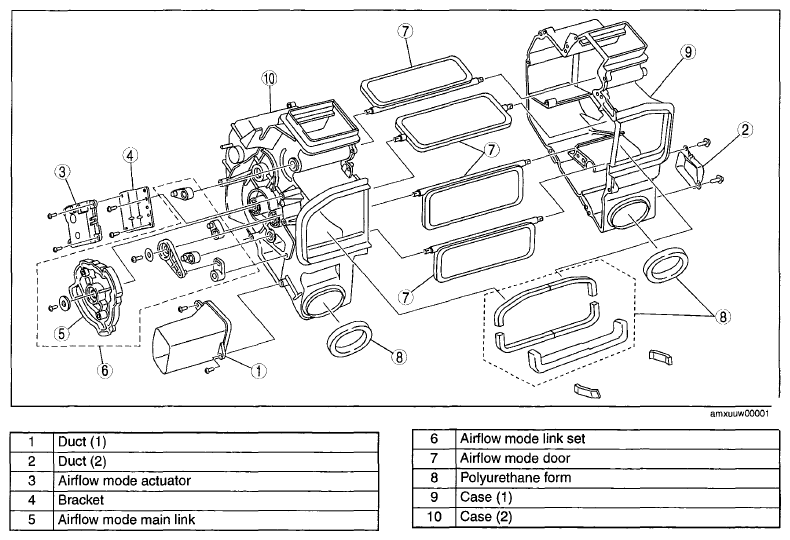

- Disassemble in the order indicated in illustration.
CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
